DRA-60-24

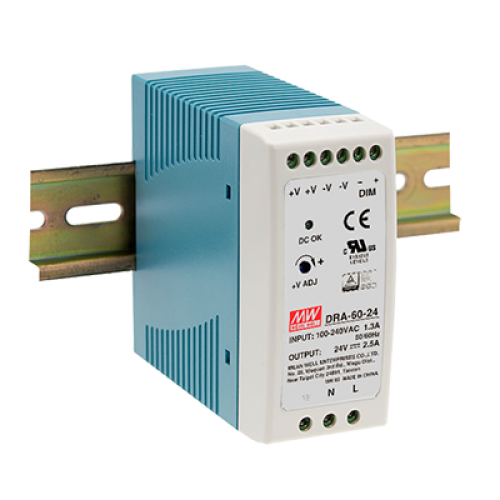

60W 24V 2.5A Switching DIN Rail Power Supply with Dimming Functionality Please ring us to discuss a great price for this product.Product Features
- LED power on indicator
- 3 years warranty
- Output voltage adjustable through internal potentiometer
- Pass LPS
- Cooling by free air convection
- Output Current adjustable through external 1 ~ 10Vdc, PWM Signal or resistance
- Can be installed on DIN rail TS-35/7.5 or 15
- 100% full load burn-in test
- Protections: Short circuit / Overload / Over Voltage
- Universal AC input
Description
DRA-60 is one 60W AC/DC DIN rail power supply, featuring the adjustable output current. Users are able to easily change the constant output current level via 1~10Vdc, PWM signal or resistance. DRA-60 can be mounted on DIN rail TS-35/7.5 or 15; in addition, the width of the unit is only 40mm, so it is well suited for installation in a limited space. DRA-60 accepts the universal AC input between 90VAC and 264VAC; the efficiency is up to 87% so that the entire series can operate under free air convection from -30°C through 70°C.
