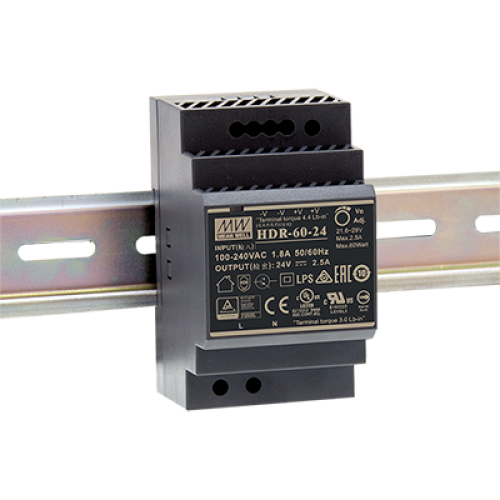

HDR-60-24
60W 24VDC 2.5A Ultra Slim Step Shape DIN Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- 3 years warranty
- Protections: Short circuit / Overload / Over voltage
- Universal input 85~264VAC(277VAC operational)
- DIN rail TS-35/7.5 or 15 mountable
- Ultra slim design with 52.5mm(3SU) width
- Pass LPS (Limited power source)
- LED indicator for power on
- Cooling by free air convection
- DC output voltage adjustable
- Isolation class II
- No load power consumption<0.3W
Description
HDR-60 is one economical ultra-slim 60W DIN rail power supply series, adapted to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed to be 52.5mm(3SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-60 is designed with plastic housing that can effectively prevent users from electric hazards. With working efficiency up to 91%, the entire series can operate at the ambient temperature between -30°C and 70°C under air convection. The complete protection functions and relevant certificates for home automation and industrial control apparatus (IEC62368-1, UL508, UL62368-1, BS EN/EN61558-2-16) make HDR-60 a very competitive power supply solution for household and industrial applications.
