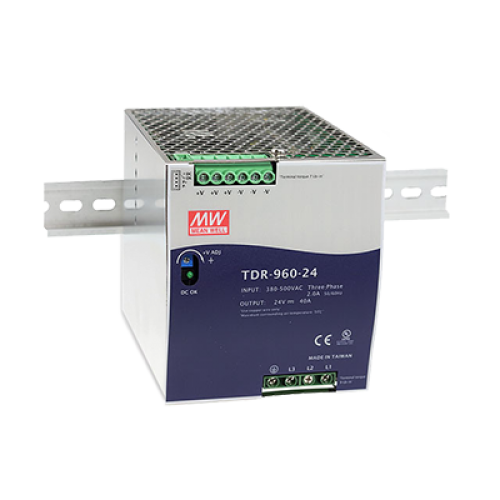

TDR-960-24
960W 24VDC 40A Three Phase PFC Industrial DIN Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- Cooling by free air convection
- High efficiency 94.5% and low power dissipation
- Can be installed on DIN rail TS-35/7.5 or 15
- 3 years warranty
- Built-in DC OK relay contact
- Three-phase 340 @ 550VAC wide range input (Dual phase operation possible)
- 100% full load burn-in test
- Built-in constant current limiting circuit
- Built-in active PFC function compliance to EN61000-3-2
- EN61000-6-2 (EN50082-2) industrial maturity level
- Protections: Short circuit / Overload / Over voltage / Over temp
- Current sharing up to 3840W (3+1)
- UL508 (industrial control equipment) approved
- Width only 110mm
Description
The TDR-960 series is a three-phase industrial din rail power supply with a built-in PFC function. Standard functions include cooling by free air convection, built-in constant current limiting circuit, current sharing up to 3840W (3+1) and protections including short circuit, overload, over voltage and over temperature.
