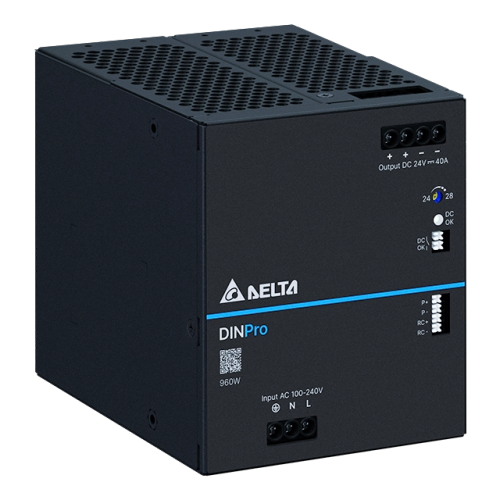

DRF-24V960W1PBA
960W 40A 24VDC High Reliability DIN Rail Power Supply Please ring us to discuss a great price for this product.Product Features
- 85–277VAC or 100–400VDC wide input range
- Withstands 305VAC input for 60 seconds
- Power Boost: 150% for 5 seconds, 200% for 50ms and 500% for 5ms
- Full-load operation up to +60°C
- Wide -40°C to +80°C operating temperature range with derating
- DC OK relay contact and LED status indication
- Remote ON/OFF control
- Conformal coating for additional PCB protection
- Short-circuit, overload and over-voltage protection
- SEMI F47 compliance, Class B EMC performance and 5-year warranty
Description
The Delta DRF-24V960W1PBA is a high-power industrial DIN rail power supply delivering 24VDC at 40A with 960W rated output. It accepts 85–277VAC or 100–400VDC input and offers 150% Power Boost for five seconds, 200% for 50ms and up to 500% for 5ms to support demanding start-up and transient loads. Typical efficiency reaches 95.5% at 230VAC, with output adjustment from 24V to 28V. Unlike the lower-power DIN Pro models, the 960W version supports current sharing and parallel operation of up to four units, enabling higher-capacity power systems. Remote ON/OFF, DC OK relay and LED indication, conformal coating and comprehensive electrical protection further support demanding industrial installations.
