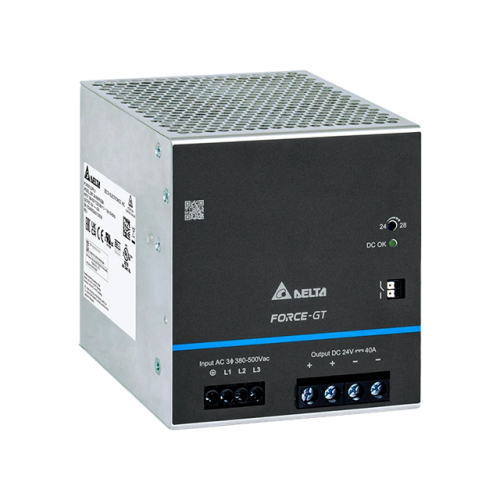

DRF-24V960W3GBA
960W 40A 24VDC Three/Two Phase DIN Rail Power Supply - Screw Terminal Please ring us to discuss a great price for this product.Product Features
- High efficiency up to 96%
- Surge capacity up to 6kV with SPD
- Constant-current mode for charging and demanding DC loads
- Wide operating temperature range down to -40°C
- Full rated output at elevated ambient temperatures
- DC OK relay contact and LED status indication
- Conformal-coated electronics for improved environmental protection
- Short-circuit, overload and over-voltage protection
- AC and DC input capability across the Force-GT range
- Available with screw-terminal or spring-clamp connections
Description
The Delta DRF-24V960W3GBA delivers 24VDC at 40A with 960W rated output for high-power industrial machinery, automation and control systems. Input capability covers 3 × 320–575VAC, 2 × 340–575VAC and 450–800VDC, while the output can be adjusted from 24V to 28V. Typical efficiency reaches 94.5% at three-phase 400/500VAC. The IP20 screw-terminal design provides 110–150% constant-current overload protection, short-circuit hiccup recovery and over-voltage auto-recovery. DC OK relay and LED indication, conformal coating, surge capability up to 6kV with SPD and cold-start operation at -40°C support demanding industrial installations. The unit measures 124 × 110 × 128.7mm.
