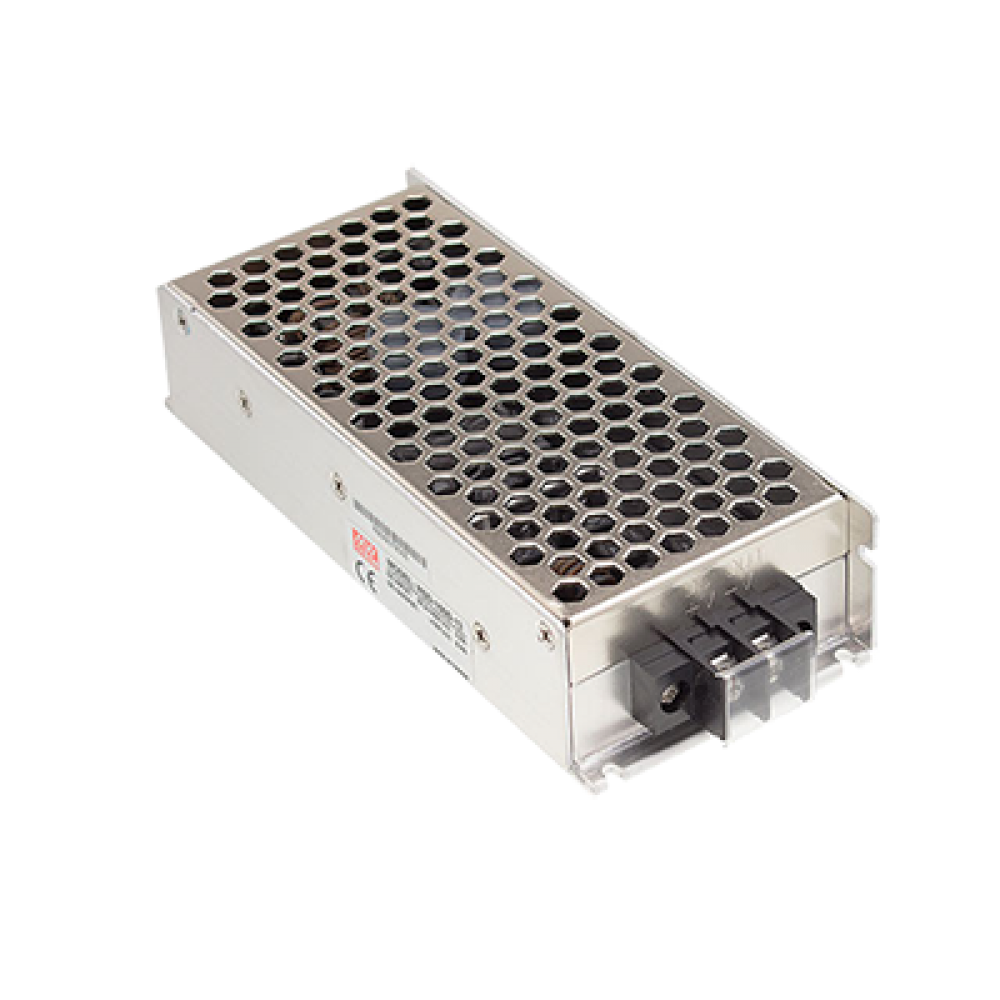

RSD-100B-24
100.8W 24VDC Input 24VDC Output Railway Converter Please ring us to discuss a great price for this product.Product Features
- 100% Full load burn-in test
- Built-in constant current limiting circuit
- Compliance to EN50155 (railway certification)
- 4000VDC I/O Isolation
- Protections: Short circuit/Overload/Over Voltage
- 105°C long life electrolytic capacitors
- 1U Low profile
- Cooling by free air convection
- 2:1 wide input range
Description
RSD-100B Series are 100W 14.4~33.6VDC input DC-DC converters with EN50155 railway certificate compliance. The series is available as 5V, 12V & 24V output options, is semi-encapsulated to provide anti-moisture, anti-dust & better heat dissipation as well as anti-vibration capabilities. Standard features include short circuit, overload, overvoltage & input reverse polarity protections and a built-in constant current limiting circuit. The converters also refer to ITE standards IEC60950-1 and EN55022 and comply with railway certificates EN50155, IEC60571, IEC61373 & EN50121-3-2.
