LRS-100-36
100.8W 36VDC 2.8A Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- Protections: Short circuit / Overload / Over voltage
- Universal AC input / Full range
- Withstand 5G vibration test
- 100% full load burn-in test
- Cooling by free air convection
- Miniature size and 1U low profile
- High operating temperature up to 70°C
- 3 years warranty
- Compliance to IEC/BS EN/EN 60335-1 (PD3) and IEC/BS EN/EN 61558-1, 2-16 for household appliances
- Withstand 300VAC surge input for 5 seconds
Description

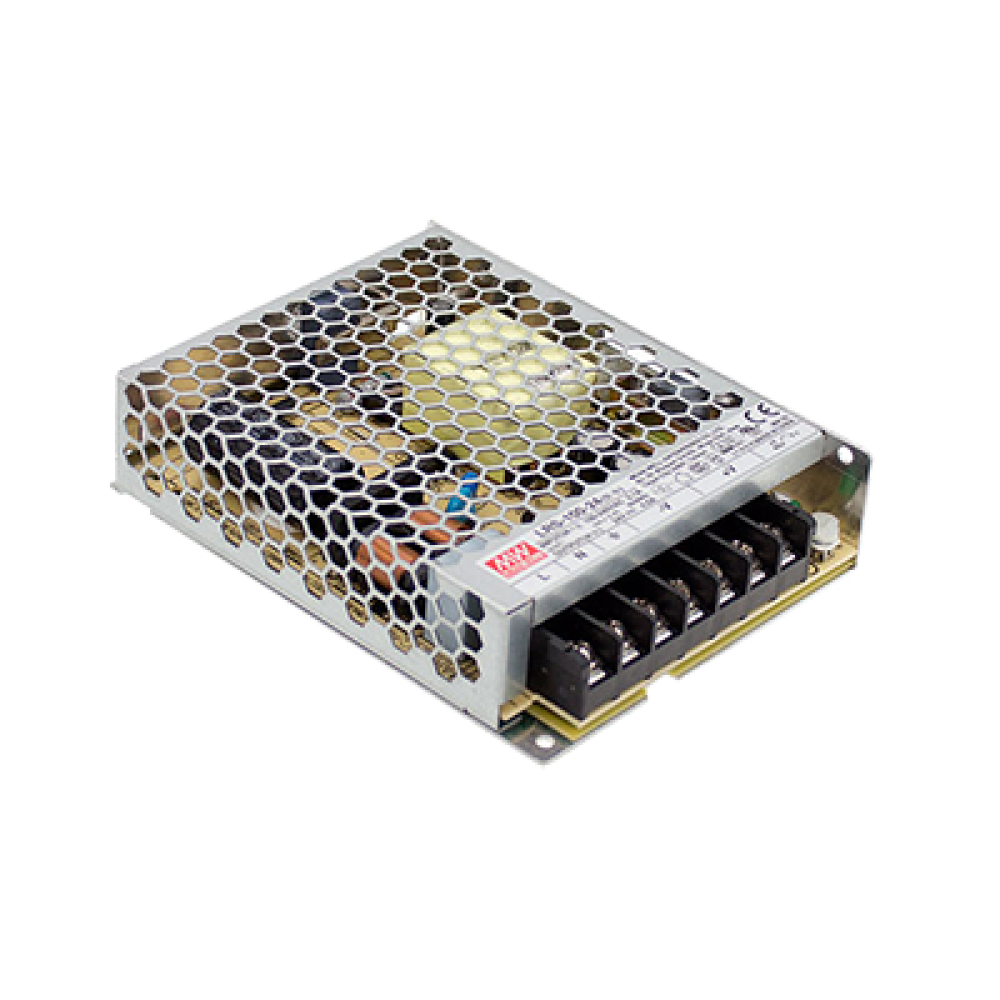

LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.In addition to the high efficiency up to 91%, the design of the metallic mesh case enhances the heat dissipation of LRS-100 so that the whole series operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no-load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement. LRS-100 has complete protection functions and 5G anti-vibration capability; it complies with international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, UL62368-1 and GB 4943.1. LRS-100 series serves as a high price-to-performance power supply solution for various industrial applications.
