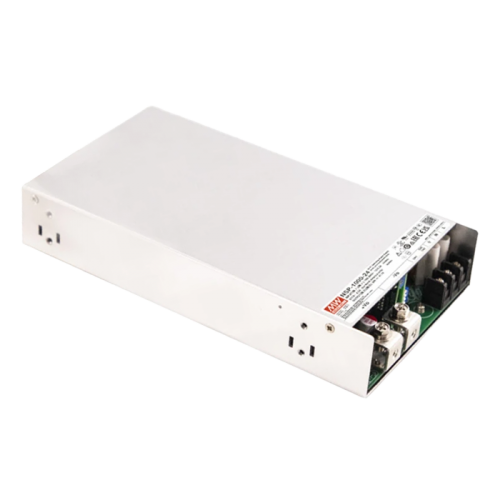

NSP-1000-15
1000.5W 66.7A 15VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- 200% peak power capability
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 4000W (3+1) for parallel use
- -40~+85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <350uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in remote ON/OFF control / Remote Sense / DC OK signal
- 5 Vaux and 12 Vaux power
- 5 years warranty
Description
The MEAN WELL NSP-1000-15 provides regulated 15VDC output at up to 66.7A with 1000.5W continuous power. Its ultra-wide 85–305VAC input with PFC supports high-reliability industrial, electronic and medical applications. The power supply provides up to 2000W and 133.4A peak output for five seconds, supporting equipment with demanding start-up or transient loads. The nominal 15V output can be adjusted from 13.5V to 19V, with 93% typical efficiency. Programmable output voltage and current provide additional system-level control, while Remote ON/OFF, Remote Sense, DC OK signalling, CANBus communication and active current sharing support flexible integration into larger power systems.
