NSP-1000-36

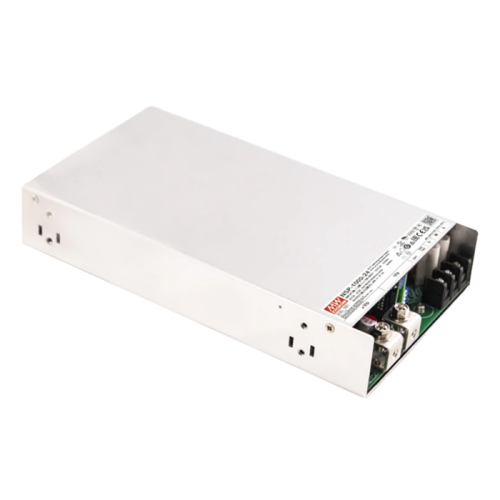

1000.8W 27.8A 36VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- 200% peak power capability
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 4000W (3+1) for parallel use
- -40~+85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <350uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in remote ON/OFF control / Remote Sense / DC OK signal
- 5 Vaux and 12 Vaux power
- 5 years warranty
Description
The MEAN WELL NSP-1000-36 is a high-reliability 36VDC enclosed power supply delivering up to 27.8A and 1000.8W rated output. Its 85–305VAC input with PFC supports a broad range of industrial and electronic equipment, while 200% peak-power capability provides up to 2000W for five seconds. The nominal output can be adjusted from 32.4V to 43.2V, with programmable voltage from 0–120% and programmable current from 0–100% supporting flexible system configuration. Typical efficiency is 93.5%. Built-in remote control, remote sense, DC OK signalling, auxiliary outputs and active current sharing simplify integration into larger systems, with parallel operation supported for up to four units.
