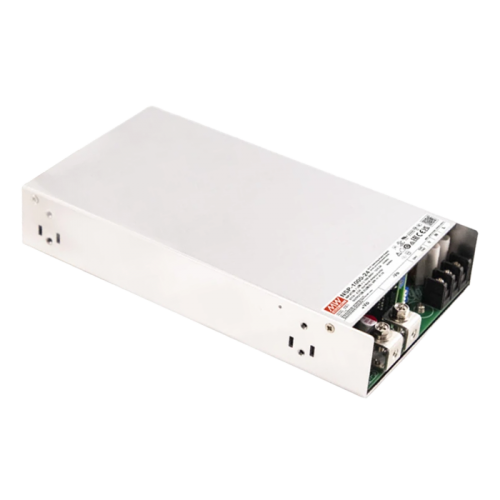

NSP-1000-24
1000.8W 41.7A 24VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- 200% peak power capability
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 4000W (3+1) for parallel use
- -40~+85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <350uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in remote ON/OFF control / Remote Sense / DC OK signal
- 5 Vaux and 12 Vaux power
- 5 years warranty
Description
The MEAN WELL NSP-1000-24 is a high-reliability 24VDC enclosed power supply delivering up to 41.7A and 1000.8W continuous output. An 85–305VAC input with PFC supports operation across global industrial power systems, while 200% peak capability supplies up to 2000W for five seconds for applications with high short-duration power demands. The 24V output can be adjusted from 21.6V to 28.8V and supports external voltage and current programming. Typical efficiency is 93.5%. Built-in remote ON/OFF, remote sense, DC OK signalling, auxiliary power and CANBus communication provide flexible system control, while active current sharing supports parallel operation of up to four units.
