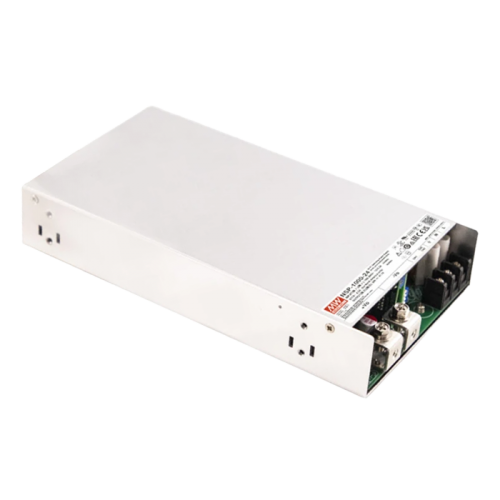

NSP-1000-12
1000.8W 83.4A 12VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- 200% peak power capability
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 4000W (3+1) for parallel use
- -40~+85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <350uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in remote ON/OFF control / Remote Sense / DC OK signal
- 5 Vaux and 12 Vaux power
- 5 years warranty
Description
The MEAN WELL NSP-1000-12 is a high-reliability 12VDC enclosed power supply delivering up to 83.4A and 1000.8W continuous output. Its ultra-wide 85–305VAC input with PFC supports industrial automation, electronic equipment, medical systems and other demanding applications. The unit provides up to 2000W and 166.7A peak output for five seconds to accommodate high short-duration loads. The nominal 12V output is adjustable from 10.8V to 14.4V, with 92% typical efficiency. Output voltage and current can also be programmed electronically. Remote ON/OFF, Remote Sense, DC OK signalling, CANBus communication and active current sharing support advanced integration, including parallel operation of up to four units.
