NSP-1000-60
1008W 16.8A 60VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- 200% peak power capability
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 4000W (3+1) for parallel use
- -40~+85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <350uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in remote ON/OFF control / Remote Sense / DC OK signal
- 5 Vaux and 12 Vaux power
- 5 years warranty
Description

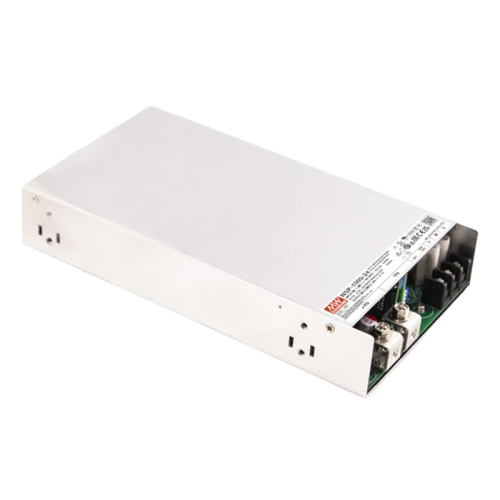

The MEAN WELL NSP-1000-60 is a high-reliability 60VDC enclosed power supply delivering up to 16.8A and 1008W rated output. An ultra-wide 85–305VAC input with PFC supports global industrial power systems, while 200% peak-power capability provides up to 2000W for five seconds for equipment with short-duration load demands. The 60V output can be adjusted from 54V to 72V, with programmable voltage and current functions providing additional control. Typical efficiency reaches 94%. Built-in remote ON/OFF, remote sense, DC OK signalling and auxiliary power support system integration, while active current sharing allows up to four units to operate in parallel for higher output capacity.
