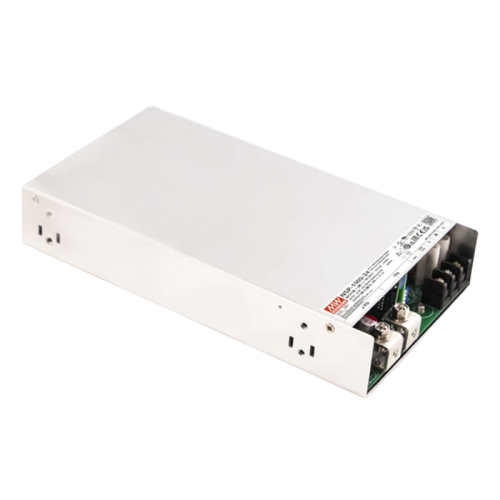

NSP-1000-48
1008W 21A 48VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- 200% peak power capability
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 4000W (3+1) for parallel use
- -40~+85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <350uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in remote ON/OFF control / Remote Sense / DC OK signal
- 5 Vaux and 12 Vaux power
- 5 years warranty
Description
The MEAN WELL NSP-1000-48 delivers 48VDC at up to 21A with 1008W rated power, providing a high-efficiency solution for industrial automation, telecommunications, network equipment and other demanding systems. Its 85–305VAC input incorporates PFC, while 200% peak-power capability supplies up to 2000W for five seconds. The 48V output can be adjusted from 43.2V to 55V and supports programmable voltage and current control. Typical efficiency reaches 94%. Remote ON/OFF, remote sense, DC OK signalling, 5V and 12V auxiliary outputs and CANBus communication support system integration, while active current sharing allows up to four units to be connected in parallel.
