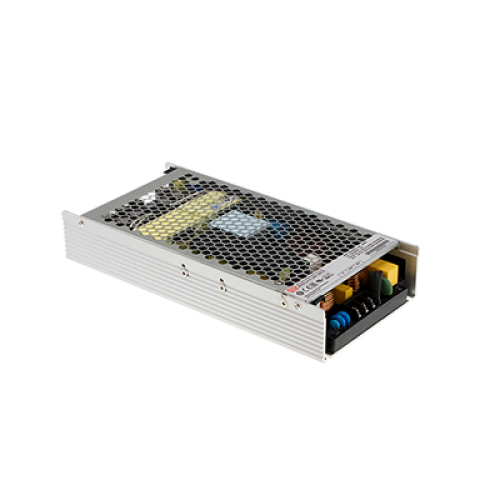

UHP-1000-36
1008W 36VDC 28A Slim Enclosed PFC Power Supply Please ring us to discuss a great price for this product.Product Features
- Output voltage and constant current level programmable
- 30°C ~ +70°C working temperature
- Slim and low profile (41mm)
- Built-in active PFC function
- Fanless and conduction-cooled design
- 5 years warranty
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Withstand 300VAC surge input for 5 seconds
Description
UHP-1000 series is a 1000W single-output slim type power supply with 41mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 12V, 24V, 36V, and 48V. In addition to the high efficiency up to 96%, the whole series operates from -30°C ~ +70°C under air convection without fan.UHP-1000 has the complete protection functions and 5G anti-vibration capability. It is complied with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1. UHP-1000 series serves as a high-performance power supply solution for various industrial applications.
