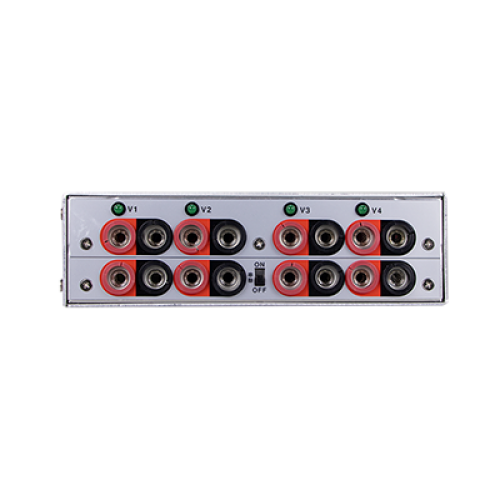

ERS-1400
1200 ~ 1440W 320VDC 6.3A 10 ~ 60VDC Input Enclosed Energy Recycling Power Supplies Please ring us to discuss a great price for this product.Product Features
- Wide input voltage range 10~60VDC / 60~380VDC by models
- Remote control and monitoring by CANBus protocol via CMU2A control console
- 5 years warranty
- Flexible CC/CV/CP operation modes
- High efficiency up to 91%
- Modular design for flexible configuration
- Maximum 64 units ERS-1400 series that can be connected
- Protections: Over voltage / Under voltage / Over temperature / Communication error
Description
The ERS-1400 series is a DC energy recycling power unit that supports 1400W rated input; it can achieve high efficiency up to 91%. CC and CV/CP modes are selectable, and the four input channels can be used independently or connected in series or parallel, offering flexible combinations for various applications. Moreover, the system also provides remote control and monitoring functions by using CMU2A or the CANBus protocol for data analysis and remote monitoring. ERS-1400 supports 1060 input voltage & ERS-1400H supports 60~380VDC input voltage.
