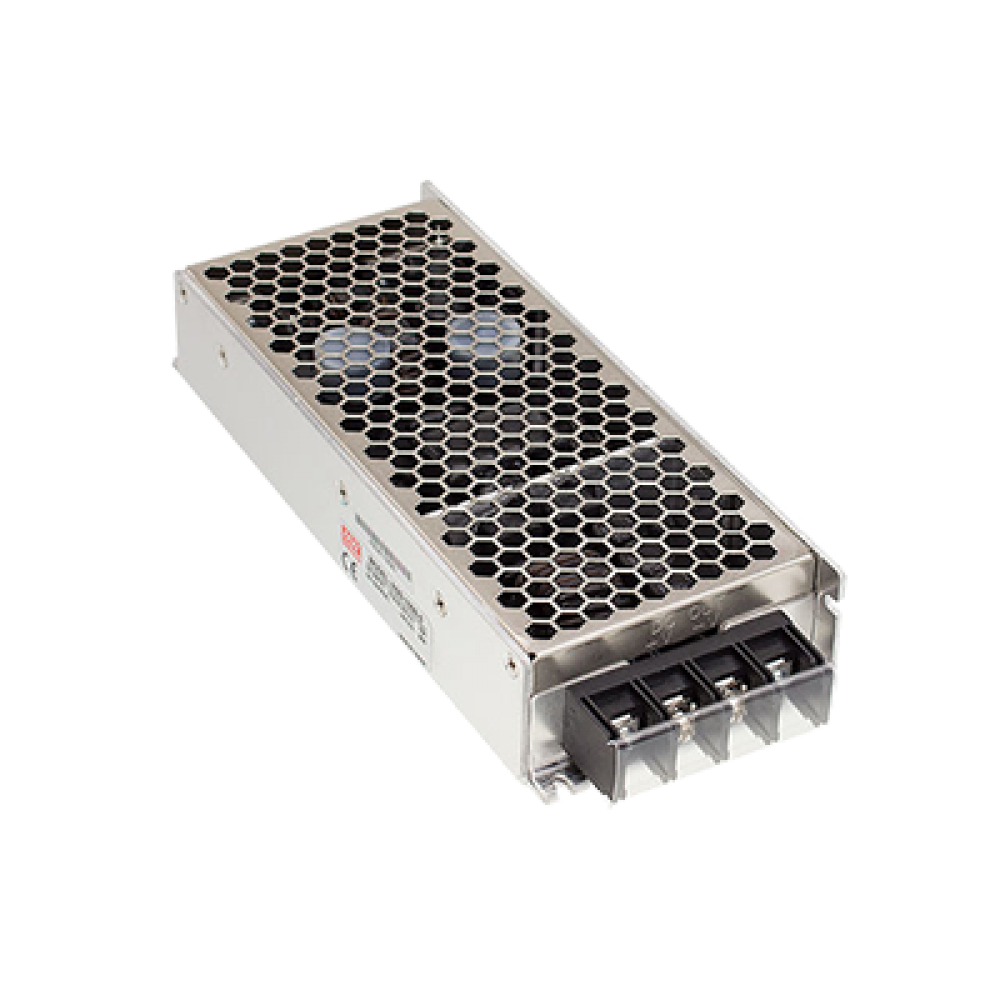

RSD-150D-5
150W 110VDC Input 24VDC Output Railway Converter Please ring us to discuss a great price for this product.Product Features
- 1U low profile 36mm
- LED indicator for power on
- 2:1 wide input range
- All using 105°C long life electrolytic capacitors
- Built-in constant current limiting circuit
- Cooling by free air convection
- 4000VDC I/O isolation
- Compliance to EN50155 railway standard
- 100% full load burn-in test
Description
The MEAN WELL RSD-150 Series is a rugged 150W DC-DC converter designed for railway and industrial applications. With 2:1 wide input voltage range options and 4000VDC reinforced isolation, this half-encapsulated unit is built to comply with BS EN/EN50155 and BS EN/EN45545-2 railway standards.It operates with natural convection and offers reliable protection against short circuit, overload, overvoltage, overtemperature, and reverse polarity. The RSD-150 features a low-profile 36mm design and uses 105°C long-life electrolytic capacitors for extended service life, making it suitable for compact, demanding environments.With its built-in constant current limiting circuit, full power burn-in test, and power-on LED indicator, the RSD-150 is the ideal choice for reliable power delivery in mission-critical transport and automation systems.
