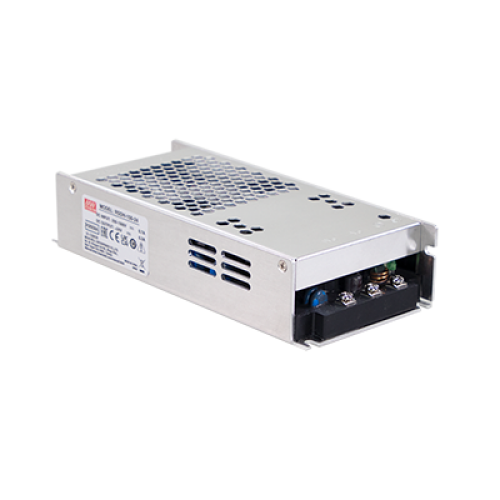

RSDH-150-32
150W 250 ~ 1500VDC Input 32VDC Output High Reliability Converter Please ring us to discuss a great price for this product.Product Features
- 3 years warranty
- Withstand 1700Vdc surge input for 10 seconds
- 40ºC ~ +80°C ultra-wide operating temperature (> +55°C derating)
- 1U low profile 41mm
- 250~1500Vdc 6:1 ultra-wide input range
- 4KVac I/O high isolation (Reinforced isolation)
- Fanless design, half encapsulated, cooling by free air convection
Description
RSDH-150 series is a 250~1500Vdc ultra-high input enclosed type DC-DC converter which can supply a stable working voltage for the load. Main features are as follows: -40~+80°C wide range operating temperature, 4kV high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. RSDH-150 is compliant with UL1741 and BS EN/EN-61000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation, such as solar power, and windmill power generation, for instance, photovoltaic power systems, high voltage inverting, DC bus centralised application, ESS, charging pile, railway and so forth.
