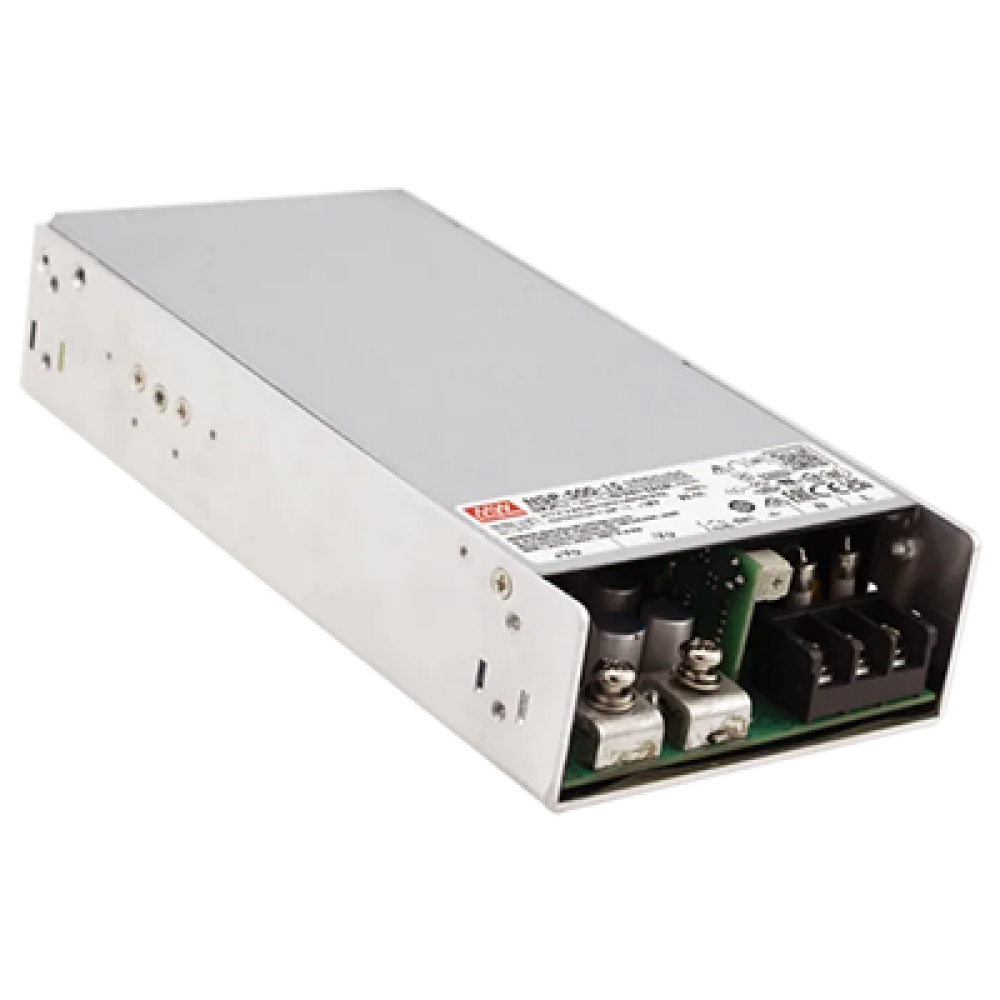

NSP-500-15
15V 33.4A 501W Enclosed AC-DC Power Supply Please ring us to discuss a great price for this product.Product Features
- 15V DC output for equipment requiring a regulated mid-range DC supply
- Rated output current of 33.4A
- Rated output power of 501W
- 1000W peak power capability for short-duration load demands
- Peak current capability of 66.7A for 5 seconds
- Wide 85 to 305Vac input range with 120 to 431Vdc input support
- Active PFC for improved input power performance
- Typical efficiency of 92%
- Output voltage adjustment range from 15V to 19V
- Maximum ripple and noise of 200mVp-p
- Low leakage current below 350µA
- Remote ON/OFF control for system-level power management
- Remote sense function to help compensate voltage drop across load wiring
- DC OK signal for output status monitoring
- Built-in fan ON/OFF control with noise below 45dB
- Built-in protection against short circuit, overload, over voltage and over temperature
- 5-year warranty
Description
The MEAN WELL NSP-500-15 provides regulated 15VDC output at up to 33.4A with 501W continuous power for industrial automation, electronic equipment and other high-reliability systems. Its ultra-wide 85–305VAC input incorporates PFC for broad mains compatibility. The unit can deliver up to 1000W and 66.7A peak output for five seconds, providing additional capacity for demanding short-duration loads. The nominal output can be adjusted from 15V to 19V, while typical efficiency reaches 92%. A temperature-controlled internal fan manages cooling, while built-in Remote ON/OFF, Remote Sense and DC OK signalling support external control, voltage compensation and system-status monitoring.
