MPM-15-15
15W 15VDC 1A High Density Medical Encapsulated Power Supply Please ring us to discuss a great price for this product.Product Features
- Suitable for BF application with appropriate system consideration
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- Wide operating temperature range: -40°C to +85°C
- EMI Class B for Class II configuration
- Extremely low leakage current
- No minimum load required
- 2.06" × 1.07" compact size
- 3 years warranty
- No load power consumption < 0.1W
Description

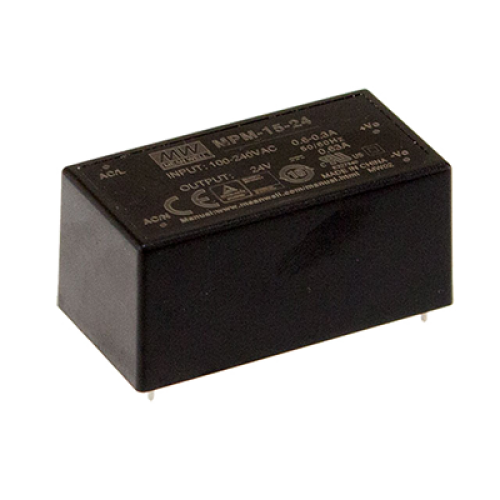

MPM-15 is a 15W high-density and compact AC/DC module-type medical power supply in a pin-type package (52.4 × 27.2 × 24mm). It supports universal input from 80~264VAC and offers a no-load power consumption of less than 0.1W. With a peak efficiency of up to 87%, this unit uses Class II (no FG) double insulation and full potting for superior heat dissipation and longevity.It meets IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1 (version 3) standards, providing 2 × MOPP isolation and extremely low leakage current (
