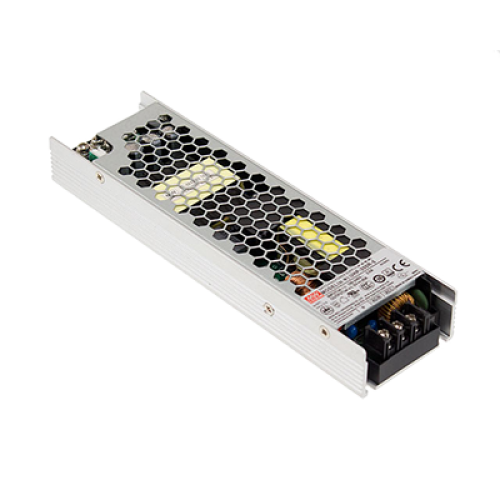

UHP-200-12
200.4W 12VDC 16.7A Slim PFC Switching Power Supply Please ring us to discuss a great price for this product.Product Features
- Built-in active PFC function
- Slim and low profile (26mm)
- Fanless design, 200W convection
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 3 years warranty
- Withstand 300VAC surge input for 5 seconds
- 30°C to +70°C working temperature
- LED indicator for power on
- Operating altitude up to 5000 meters (Note 5)
- DC OK active signal and redundant function (option)
Description
The UHP-200-12 is a 12V series is a 200W single output slim power supply with a 26mm low profile design and an input range of 90 ~ 264VAC providing an output voltage line 3.3V - 48V. The UHP-200-R variations include a Built-in DC OK active signal and redundant function. The UHP-200 series has an efficiency of up to 94% and operate from -30°C ~ 70°C under air convection without a fan. Included in this series is a protection function and 5G anti-vibration capabilities.
