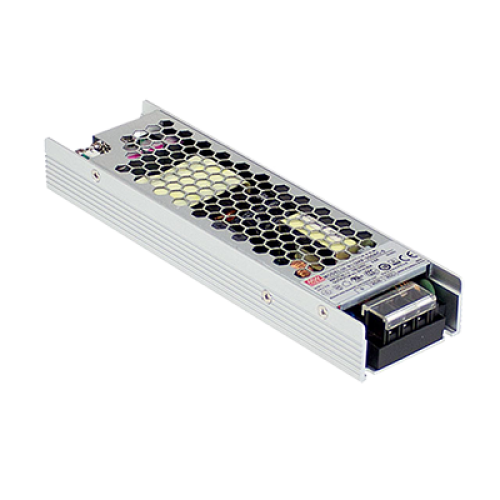

UHP-200R-48
201.6W 48VDC 4.2A Slim PFC Switching Power Supply with Redundant Function Please ring us to discuss a great price for this product.Product Features
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fanless design, 200W convection
- Slim and low profile (26mm)
- DC OK active signal and redundant function (option)
- Withstand 300VAC surge input for 5 seconds
- 3 years warranty
- Operating altitude up to 5000 meters (Note 5)
- 30°C to +70°C working temperature
- LED indicator for power on
- Built-in active PFC function
Description
The UHP-200R-48 is a 48V series is a 200W single output slim power supply with a 26mm low profile design include a Built-in DC OK active signal and redundant function. With an input range of 90 ~ 264VAC providing an output voltage line 3.3V - 48V. The UHP-200 series has an efficiency of up to 94% and operate from -30°C ~ 70°C under air convection without a fan. Included in this series is a protection function and 5G anti-vibration capabilities.
