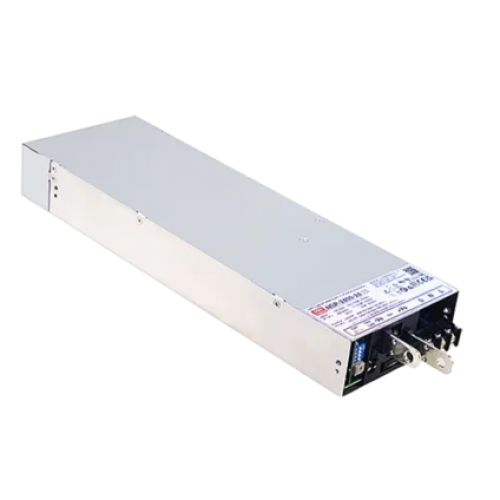

NSP-2400-15
2200W 146.7A 15VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- Global certificates in multi-fields
- 200% peak power capability
- High efficiency up to 93%
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 9600W (3+1) for parallel use
- CANBus built-in
- -40~85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <500uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
Description
The MEAN WELL NSP-2400-15 provides regulated 15VDC output at up to 146.7A with 2200W continuous power for high-reliability industrial and electronic systems. Its 85–305VAC input incorporates PFC for broad mains compatibility. At input voltages of 220VAC or above, the unit provides up to 4400W and 293.3A peak output for up to two seconds, supporting equipment with demanding short-duration loads. The nominal 15V output can be adjusted from 13.5V to 19V, while typical efficiency reaches 90%. Programmable voltage and current, built-in CANBus, Remote ON/OFF, Remote Sense and DC OK signalling provide flexible control and monitoring. Active current sharing supports parallel operation for higher system capacity.
