NSP-2400-12
2200W 183.3A 12VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- Global certificates in multi-fields
- 200% peak power capability
- High efficiency up to 93%
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 9600W (3+1) for parallel use
- CANBus built-in
- -40~85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <500uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
Description

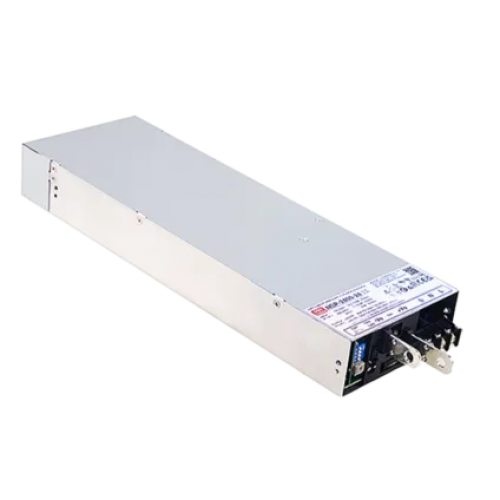

The MEAN WELL NSP-2400-12 is a high-current 12VDC enclosed power supply delivering up to 183.3A and 2200W continuous output. Its ultra-wide 85–305VAC input with PFC supports industrial automation, electronic equipment, medical systems and other demanding applications. At input voltages of 220VAC or above, the unit can provide up to 4400W and 366.6A peak output for up to two seconds. The 12V output is adjustable from 10.8V to 14.4V and typical efficiency is 89%. Programmable voltage and current provide extensive system flexibility, while built-in CANBus, Remote ON/OFF, Remote Sense, DC OK signalling and auxiliary power support advanced monitoring and control. Active current sharing also enables higher-power parallel systems.
