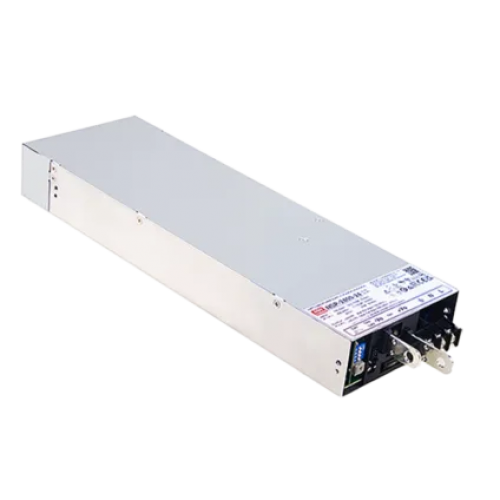

NSP-2400-36
2397W 66.6A 36VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- Global certificates in multi-fields
- 200% peak power capability
- High efficiency up to 93%
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 9600W (3+1) for parallel use
- CANBus built-in
- -40~85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <500uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
Description
The MEAN WELL NSP-2400-36 is a high-reliability 36VDC enclosed power supply delivering up to 66.6A and 2397W continuous output. Its 85–305VAC input with PFC supports industrial automation, electronic equipment, medical systems and other demanding applications across a broad range of mains supplies. At 220VAC input and above, the unit can provide up to 4795W and 133A peak output for up to five seconds. The 36V output is adjustable from 32.4V to 43.2V, with typical efficiency reaching 91.5%. Programmable voltage and current provide additional control, complemented by built-in CANBus, Remote ON/OFF, Remote Sense and DC OK signalling. Active current sharing enables parallel operation for higher-power systems.
