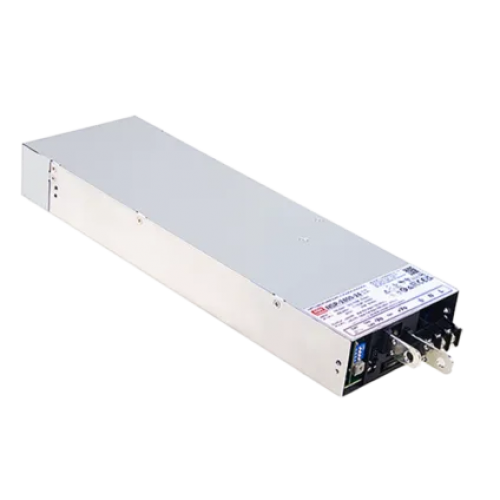

NSP-2400-27
2397W 88.8A 27VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- Global certificates in multi-fields
- 200% peak power capability
- High efficiency up to 93%
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 9600W (3+1) for parallel use
- CANBus built-in
- -40~85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <500uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
Description
The MEAN WELL NSP-2400-27 provides regulated 27VDC output at up to 88.8A with 2397W continuous power for industrial automation, electronic equipment, control systems and other high-reliability applications. Its ultra-wide 85–305VAC input incorporates PFC for global mains compatibility. At input voltages of 220VAC or above, the unit provides up to 4795W and 177.6A peak output for up to five seconds. Output voltage can be adjusted from 24.3V to 32.4V, with typical efficiency of 91%. Programmable output voltage and current support flexible system configuration, while CANBus, Remote ON/OFF, Remote Sense and DC OK signalling provide control and monitoring functions. Active current sharing supports higher-power parallel installations.
