NSP-2400-24

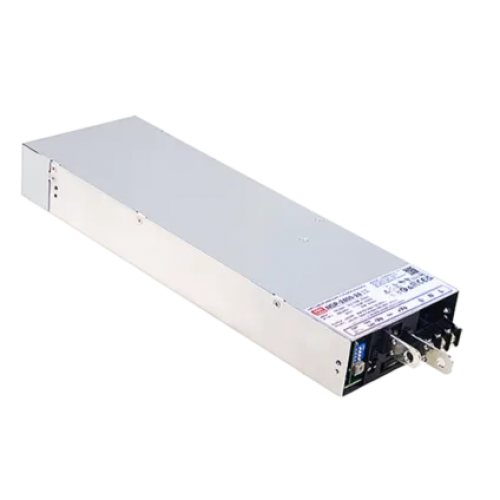

2400W 100A 24VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- Global certificates in multi-fields
- 200% peak power capability
- High efficiency up to 93%
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 9600W (3+1) for parallel use
- CANBus built-in
- -40~85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <500uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
Description
The MEAN WELL NSP-2400-24 is a high-reliability 24VDC enclosed power supply delivering up to 100A and 2400W continuous output. Its ultra-wide 85–305VAC input with PFC makes it suitable for industrial automation, control systems, medical equipment, security systems and other applications requiring dependable high-power 24VDC. At input voltages of 220VAC or above, it can provide up to 4800W and 200A peak output for up to five seconds. Output voltage is adjustable from 21.6V to 28.8V, with 91% typical efficiency. Programmable voltage and current, CANBus, Remote ON/OFF, Remote Sense, DC OK signalling and auxiliary power provide extensive control and integration options.
