NSP-2400-48

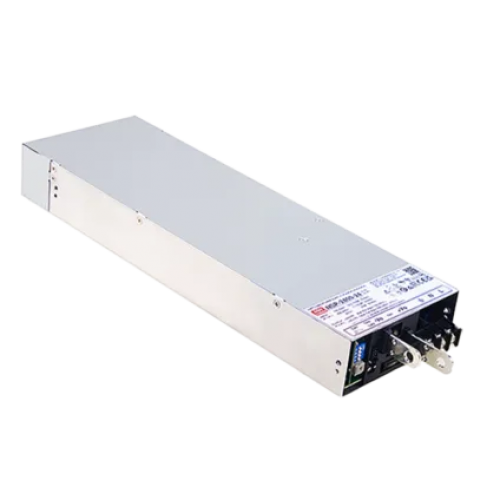

2400W 50A 48VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- Global certificates in multi-fields
- 200% peak power capability
- High efficiency up to 93%
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 9600W (3+1) for parallel use
- CANBus built-in
- -40~85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <500uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
Description
The MEAN WELL NSP-2400-48 delivers regulated 48VDC output at up to 50A with 2400W continuous power, making it suitable for industrial automation, network equipment, telecommunications, PoE systems, medical equipment and other demanding 48V applications. Its ultra-wide 85–305VAC input incorporates PFC for broad mains compatibility. At input voltages of 220VAC or above, the unit provides up to 4800W and 100A peak output for up to five seconds. Output voltage can be adjusted from 43.2V to 55V, with typical efficiency reaching 92%. Programmable voltage and current, built-in CANBus, Remote ON/OFF, Remote Sense and DC OK signalling support advanced system control, while active current sharing enables higher-power parallel installations.
