NSP-500-27
27V 18.6A 502.2W Enclosed AC-DC Power Supply Please ring us to discuss a great price for this product.Product Features
- 27V DC output for specialist equipment requiring a regulated 27V supply
- Rated output current of 18.6A
- Rated output power of 502.2W
- 1000W peak power capability for short-duration load demands
- Peak current capability of 37A for 5 seconds
- Wide 85 to 305Vac input range with 120 to 431Vdc input support
- Active PFC for improved input power performance
- Typical efficiency of 94%
- Output voltage adjustment range from 26V to 32V
- Maximum ripple and noise of 240mVp-p
- Low leakage current below 350µA
- Remote ON/OFF control for system-level power management
- Remote sense function to help compensate voltage drop across load wiring
- DC OK signal for output status monitoring
- Built-in fan ON/OFF control with noise below 45dB
- Built-in protection against short circuit, overload, over voltage and over temperature
- 5-year warranty
Description

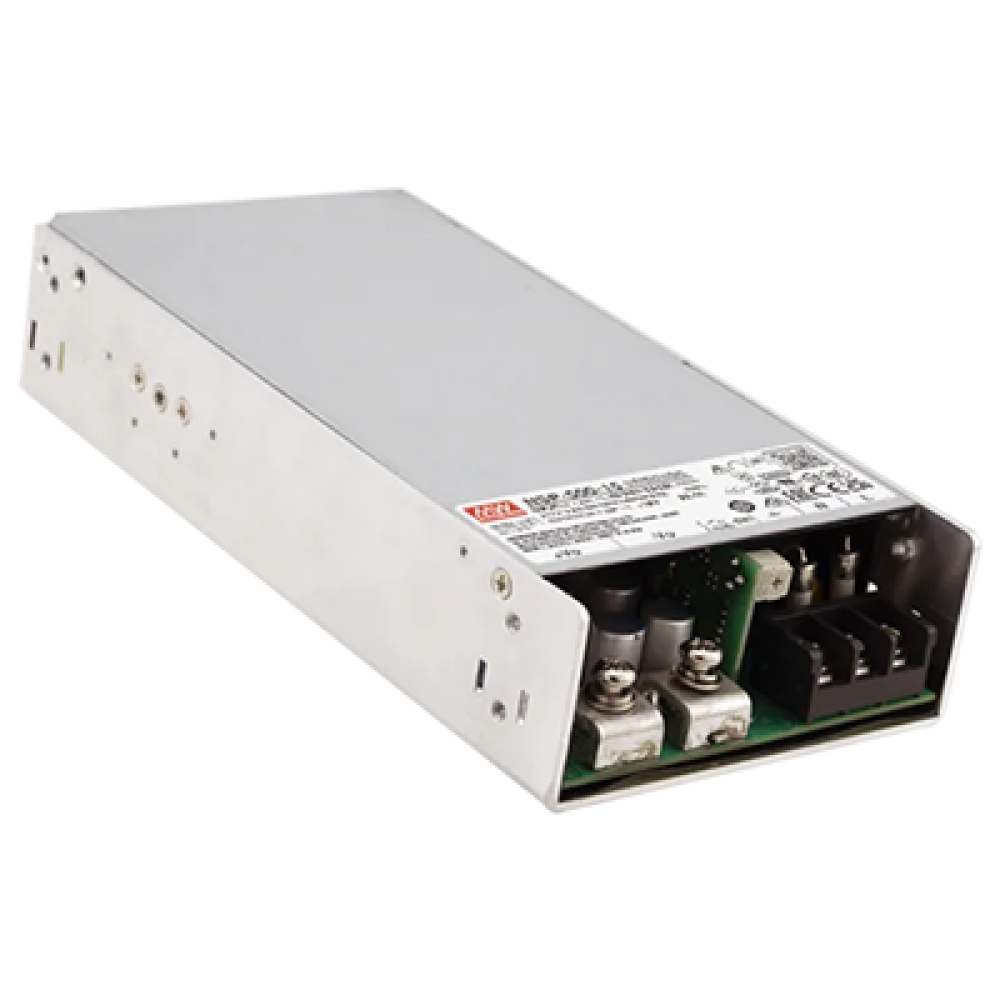

The MEAN WELL NSP-500-27 provides 27VDC output at up to 18.6A with 502.2W continuous power for industrial automation, electronic equipment, control systems and other high-reliability applications. Its ultra-wide 85–305VAC input incorporates PFC for broad mains compatibility. The unit provides up to 1000W and 37A peak output for five seconds to accommodate demanding short-duration loads. Output voltage can be adjusted from 26V to 32V, with typical efficiency reaching 94%. A temperature-controlled internal fan provides forced-air cooling, while Remote ON/OFF, Remote Sense and DC OK functions support external control, wiring-drop compensation and output-status monitoring.
