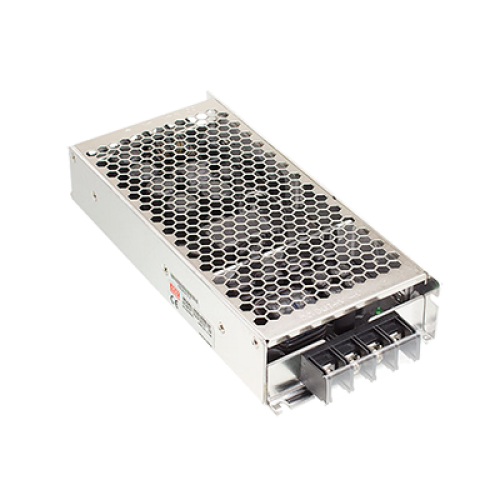

RSD-300F-12
300W 72VDC Input 12VDC Output Railway Converter Please ring us to discuss a great price for this product.Product Features
- 4000VDC I/O isolation
- LED indicator for power on
- 100% full load burn-in test
- 1U low profile 40mm
- 2:1 wide input range
- All using 105°C long life electrolytic capacitors
- Built-in constant current limiting circuit
- Compliance to EN50155 railway certification
- Cooling by free air convection
Description
The RSD-300 series is a 300W enclosed DC-DC converter suitable for railway applications. Standard functions include 2:1 wide input range, 4000VDC input/output isolation, 5G anti-vibration ability and protections including short circuit, overload, output over voltage, over temperature and input reverse polarity. With up to date high efficiency circuit design, the RSD-300 series possesses up to 91% of high efficiency and can work between -40~+70°C. RSD-300B Series input voltage range: 16.8~31.2VDC RSD-300C Series input voltage range: 33.6~62.4VDC RSD-300D Series input voltage range: 67.2~143VDC.
