RSD-30H-24

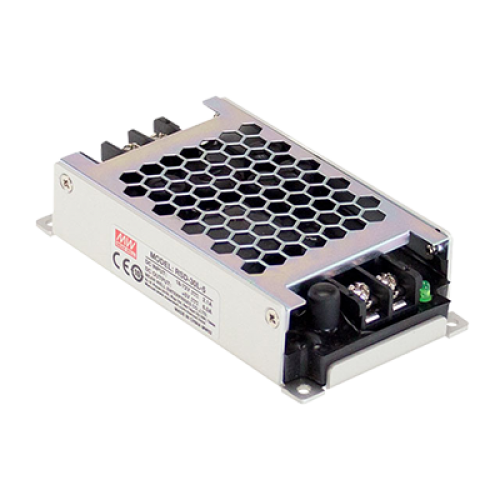

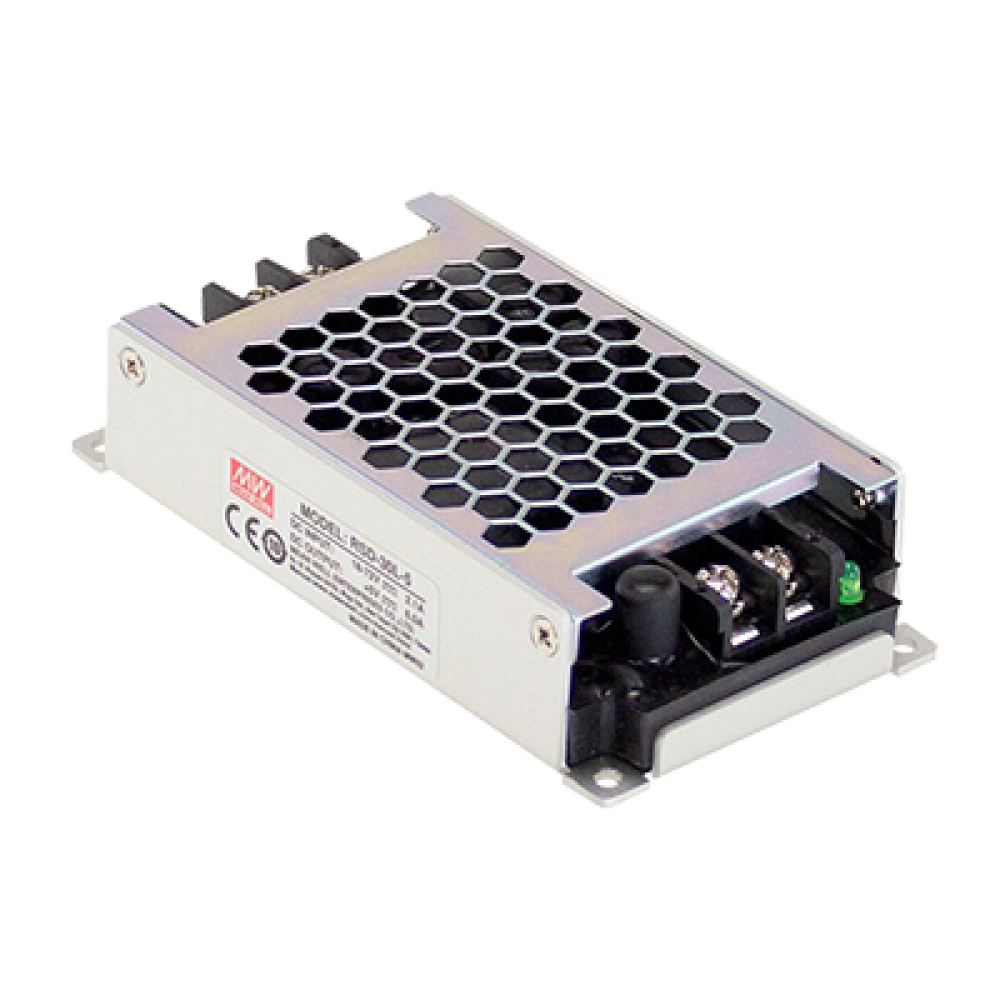

30W 110VDC Input 24VDC Output Railway Converter Please ring us to discuss a great price for this product.Product Features
- Compliance to EN50155 and EN45545-2 railway standard
- Built-in constant current limiting circuit
- 3 years warranty
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity
- Ultra compact and 1U low profile(25mm)
- 4:1 wide input range
- 4000VDC I/O isolation (reinforced isolation)
Description
RSD-30 series is a 30W enclosed type railway DC-DC converter with a low ripple and noise, supreme EMC characteristics, 4kVDC I/P-OP, 25mm low enclosure profile and an interior with semi-potted silicone. RSD-30 is equipped with a built-in constant current limiting circuit and protections for overload, short circuit, output over voltage and input reverse polarity and is suitable for all kinds of vehicle applications, including railway, subway, metro rapid transit system, bus, leisure trailer and vessel. RSD-30 has efficiency up to 93%, is semi-encapsulated for protection of PCB and can be used in harsh environments with high vibration, dust and extremely low or high temperatures of -40 ~ +70°C. The series has a 5G anti-vibration ability and complies with ITE standards (IEC60950-1 and EN55032) and railway certificates (EN50155, EN45545-2 and IEC60571).
