RSD-30L-24
30W 48VDC Input 24VDC Output Railway Converter Please ring us to discuss a great price for this product.Product Features
- Ultra compact and 1U low profile(25mm)
- 4000VDC I/O isolation (reinforced isolation)
- 3 years warranty
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity
- Built-in constant current limiting circuit
- Compliance to EN50155 and EN45545-2 railway standard
- 4:1 wide input range
Description

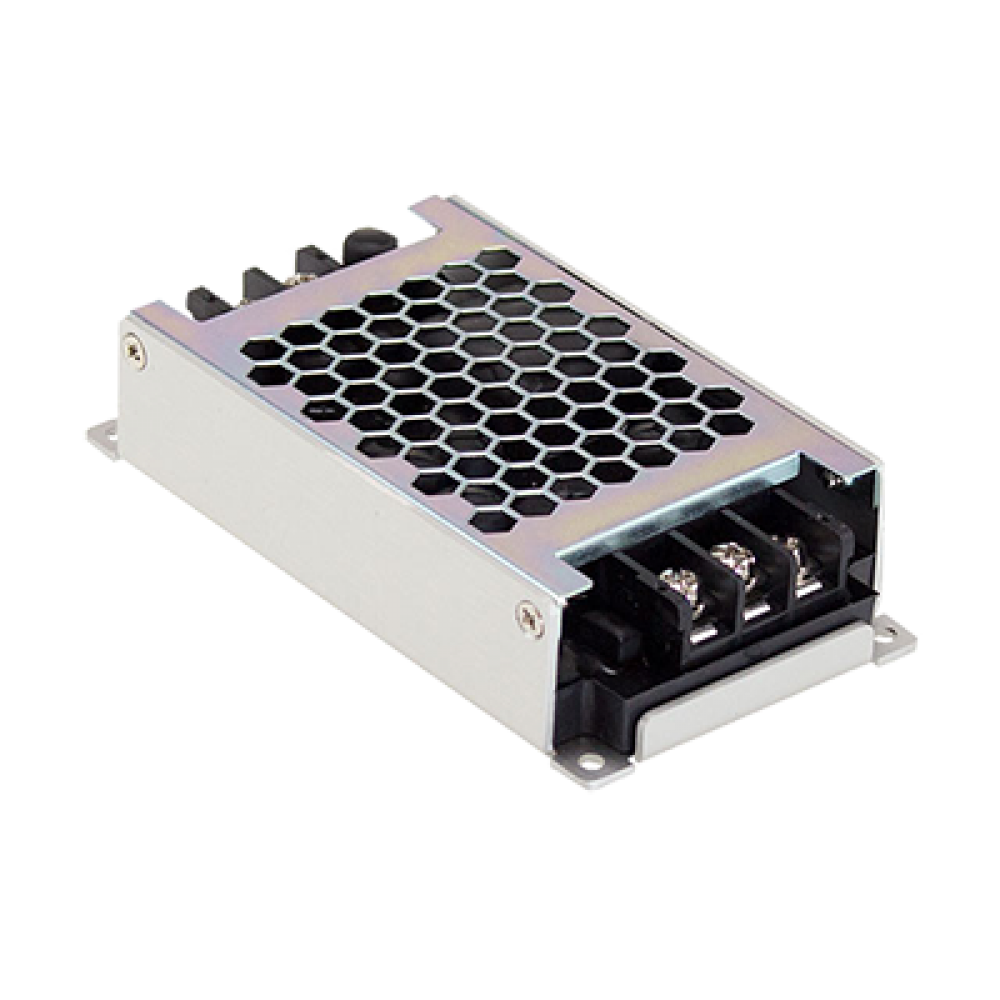

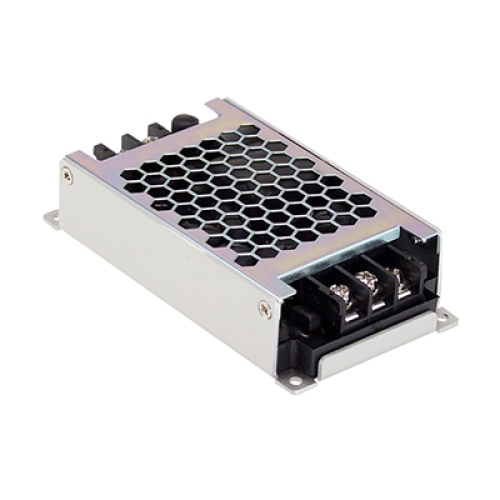

RSD-30L-24 is a 30W 24V 1.25A Reliable Railway DC-DC Converter with a low ripple and noise, supreme EMC characteristics, 4kVDC I/P-OP, 25mm low enclosure profile and an interior with semi-potted silicone. RSD-30L-24 is equipped with a built-in constant current limiting circuit and protections for overload, short circuit, output over voltage and input reverse polarity and is suitable for all kinds of vehicle applications, including railway, subway, metro rapid transit system, bus, leisure trailer and vessel. RSD-30L-24 has efficiency up to 90%, is semi-encapsulated for protection of PCB and can be used in harsh environments with high vibration, dust and extremely low or high temperatures of -40~+70°C.
