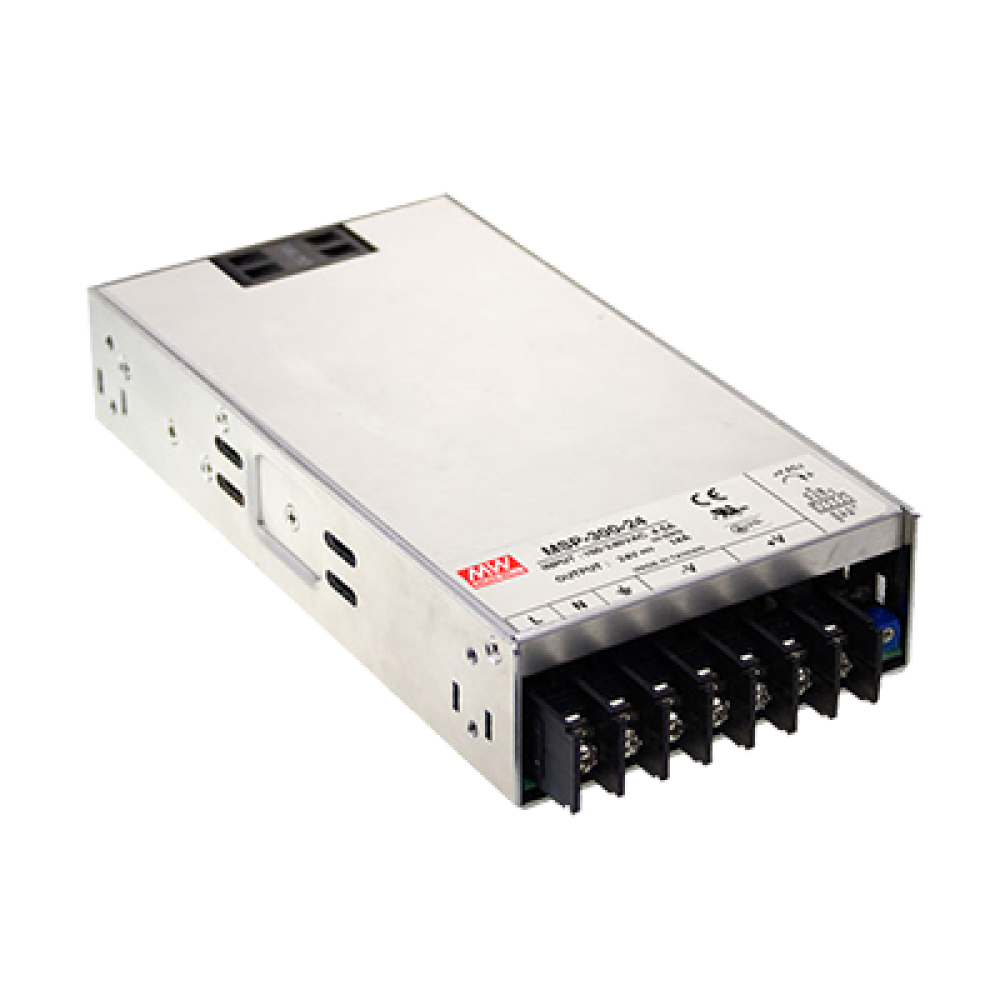

MSP-300-36
324W 36VDC 9A Medical Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- Built-in constant current limiting circuit
- Universal AC input / Full range
- Built-in active PFC function, PF > 0.95
- No load power consumption < 0.5W
- Built-in DC OK signal
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Withstand 300VAC surge input for 5 seconds
- 1U low profile 41mm
- 5 years warranty
- Built-in cooling fan ON-OFF control
- Standby 5V @ 0.3A
- Built-in remote ON-OFF control
- Built-in remote sense function
- Medical safety approved (MOOP level)
- High efficiency up to 89%
Description
The MSP-300 Series is a 300W AC/DC medical enclosed power supply; complying to medical safety regulations and characterized by its low leakage current making the series suitable for "non patient contact" equipment. With up-to-date high frequency switching technology it posesses up to 89% of high effiency allowing the power supply to be cooled by the built-in long life DC fan from -40~+50°C ambient temperature.
