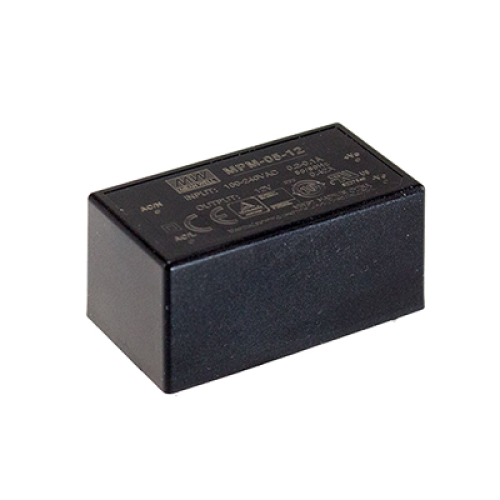

MPM-05-3.3
4.1W 3.3VDC 1.25A High Density Medical Encapsulated Power Supply Please ring us to discuss a great price for this product.Product Features
- Typical lifetime > 48,000 hours
- No minimum load required
- Wide operating temperature range: -40°C to +85°C
- Extremely low leakage current
- No load power consumption < 0.075W
- Suitable for BF applications with appropriate system consideration
- 3 years warranty
- 1.8" × 1" compact size
- EMI Class B for Class II configuration
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Description
MPM-05-3.3 is a 4.1W 3.3V 1.25A high-density and miniature (45.7x25.4x21.5mm) AC/DC module type medical grade power supply series offered in pin type. It features 80~264VAC, a no-load power consumption of less than 0.075W, high efficiency Class II (no FG) double insulation, outstanding dissipation, and high lifespan, thanks to the interior potting, 5G anti-vibration, high EMC performance 4KVAC isolation. The design observes IEC/EN60601-1 and ANSI/AAMI ES60601-1 version three 2XMOPP level and ultra-low leakage current (
