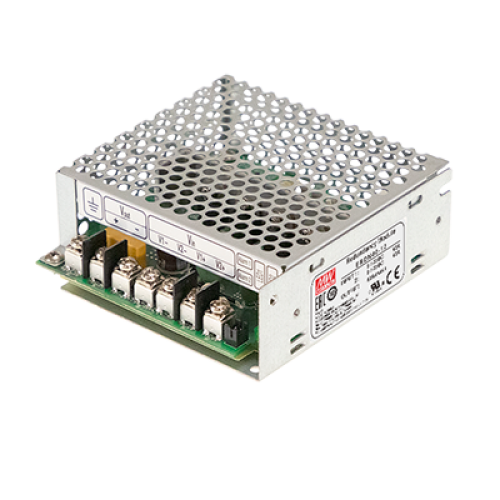

ERDN40-12
40A 12VDC 2 Channel Enclosed Type Redundancy Module Please ring us to discuss a great price for this product.Product Features
- 3 years warranty
- 40 ~ +80°C ultra-wide operating temperature (>+60°C derating)
- Built-in 2 channels DC OK signal and alarm relay contact
- 2 channels input and 1 output
- Output current up to 40A
- Cooling by free air convection
- Support 1+1 and N+1 redundancy system
Description
The ERDN40 series is a 40A redundancy module that can be used with a power supply to improve overall system operation reliability. Product key features include: 12V / 24V / 48V input voltage for selection, support N+1 and 1+1 redundancy systems, built-in two rails DC input contacts and single output. The MOSFET technology implemented can reduce heat loss and reduce the voltage difference between the input and output voltages. Built-in 2 channels DC OK relay contacts for monitoring output status, ultra-wide operating temperature of -40 to +80°C.
