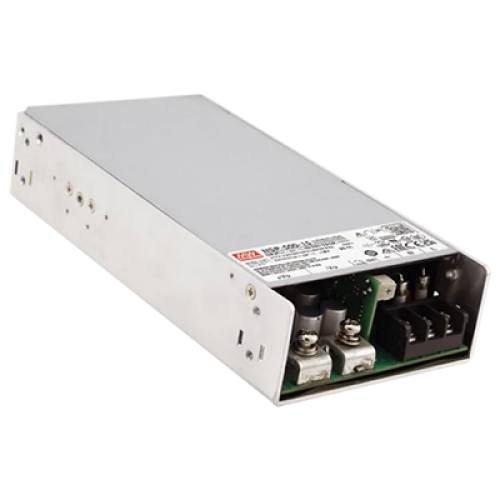

NSP-500-36
500.4W 13.9A 36VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- Rated output current of 13.9A
- Rated output power of 500.4W
- 1000W peak power capability for short-duration load demands
- Peak current capability of 27.8A for 5 seconds
- Wide 85 to 305Vac input range with 120 to 431Vdc input support
- Active PFC for improved input power performance
- Typical efficiency of 94.5%
- Output voltage adjustment range from 32V to 43V
- Maximum ripple and noise of 240mVp-p
- Low leakage current below 350µA
- Remote ON/OFF control for system-level power management
- Remote sense function to help compensate voltage drop across load wiring
- DC OK signal for output status monitoring
- Built-in fan ON/OFF control with noise below 45dB
- Built-in protection against short circuit, overload, over voltage and over temperature
- 5-year warranty
- 36V DC output for industrial, battery-related, charging and system power applications
Description
The MEAN WELL NSP-500-36 is a high-reliability 36VDC enclosed power supply delivering up to 13.9A and 500.4W continuous output. Its ultra-wide 85–305VAC input with PFC supports industrial automation, electronic equipment, charging and control-system applications across a broad range of mains supplies. The unit provides up to 1000W and 27.8A peak output for five seconds to support demanding transient loads. Output voltage is adjustable from 32V to 43V, while typical efficiency reaches 94.5%. Controlled forced-air cooling, Remote ON/OFF, Remote Sense and DC OK signalling support dependable operation and flexible integration into advanced systems.
