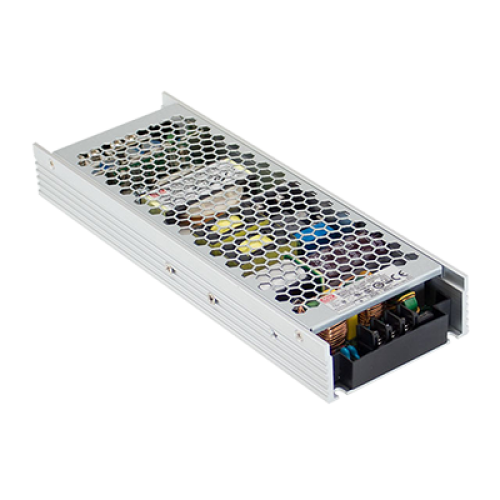

UHP-500-15
501W 15VDC 33.4A PFC Slim Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- DC OK active signal and redundant function (option)
- Fanless design 500W convection
- Withstand 300VAC surge input for 5 seconds
- LED indicator for power on
- 150% peak load capability (100ms)
- Slim and Low profile
- Built-in active PFC function
- 3 years warranty
- Operating altitude up to 5000 metres
Description
UHP-500 series is a 500W single-output slim-type power supply with a 31mm low-profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 4.2V, 5V, 12V, 15V, 24V, 36V, 48V and 55V. In addition to the high efficiency up to 95%, the whole series operates from -30°C ~ +70°C under air convection without a fan. UHP-500 has complete protection functions and 5G anti-vibration capability. It complies with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, UL 62368-1 and GB 4943.1. UHP-500 series serves as a high-performance power supply solution for various industrial applications.
