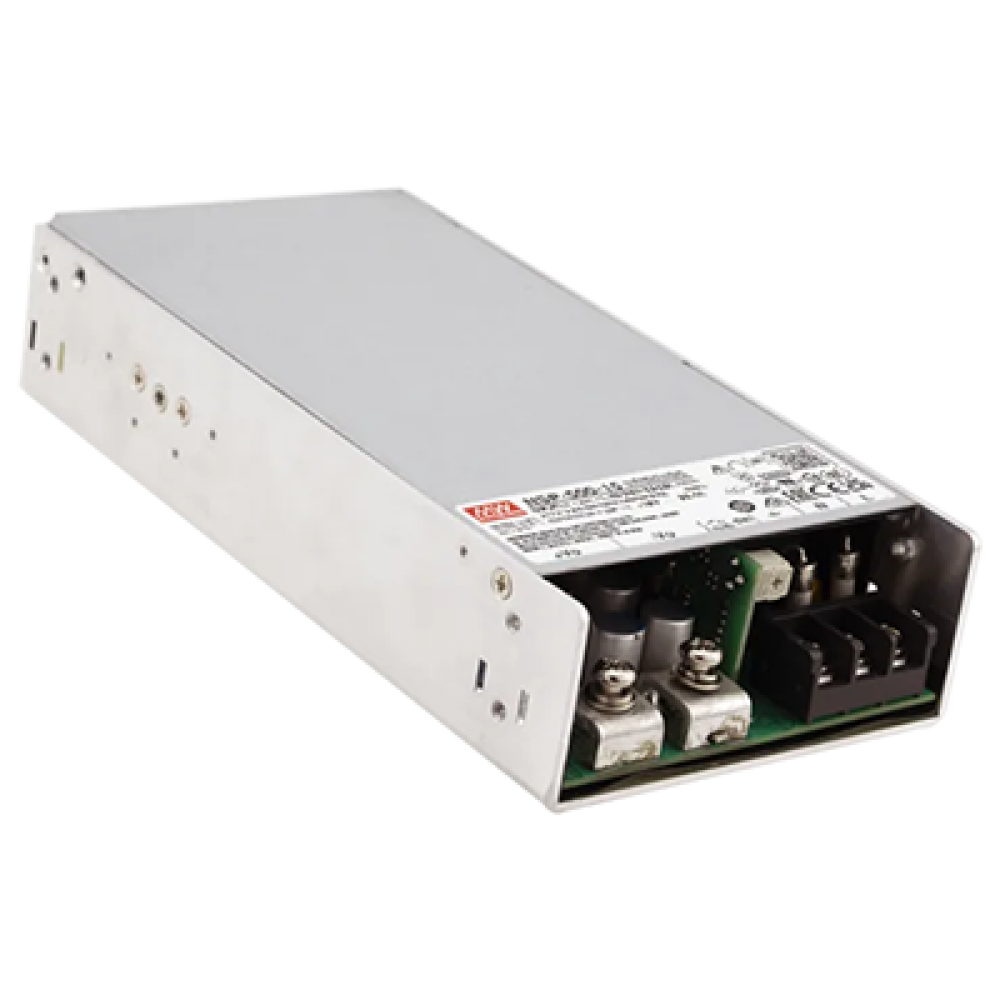

NSP-500-5
5V 90A 450W Enclosed AC-DC Power Supply Please ring us to discuss a great price for this product.Product Features
- 5V DC output for low-voltage system power requirements
- Rated output current of 90A
- Rated output power of 450W
- Wide 85 to 305Vac input range with 120 to 431Vdc input support
- Active PFC for improved input power performance
- Typical efficiency of 90%
- Output voltage adjustment range from 4.7V to 5.5V
- Maximum ripple and noise of 200mVp-p
- Low leakage current below 350µA
- Remote ON/OFF control for system-level power management
- Remote sense function to help compensate voltage drop across load wiring
- DC OK signal for output status monitoring
- Built-in fan ON/OFF control with noise below 45dB
- Built-in protection against short circuit, overload, over voltage and over temperature
- 5-year warranty
Description
The MEAN WELL NSP-500-5 is a high-current 5VDC enclosed power supply delivering up to 90A and 450W for industrial automation, electronic equipment, networking and other high-reliability applications. Its ultra-wide 85–305VAC input incorporates PFC for broad mains compatibility. The 5V output is adjustable from 4.7V to 5.5V and achieves 90% typical efficiency. A temperature-controlled internal fan provides forced-air cooling, with typical noise of 45dB. Built-in Remote ON/OFF enables external power management, while Remote Sense compensates for wiring voltage drop and the DC OK signal provides output-status monitoring. Comprehensive short-circuit, overload, over-voltage and over-temperature protection supports dependable operation.
