RSD-60L-24
60W 110VDC Input 24VDC Output Railway Converter Please ring us to discuss a great price for this product.Product Features
- 4000VDC I/O isolation (Reinforced isolation)
- Compliance to EN50155 and EN45545-2 railway standard
- Ultra compact and 1U low profile(25mm)
- 3 years warranty
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity
- Built-in constant current limiting circuit
- 4:1 wide input range
Description

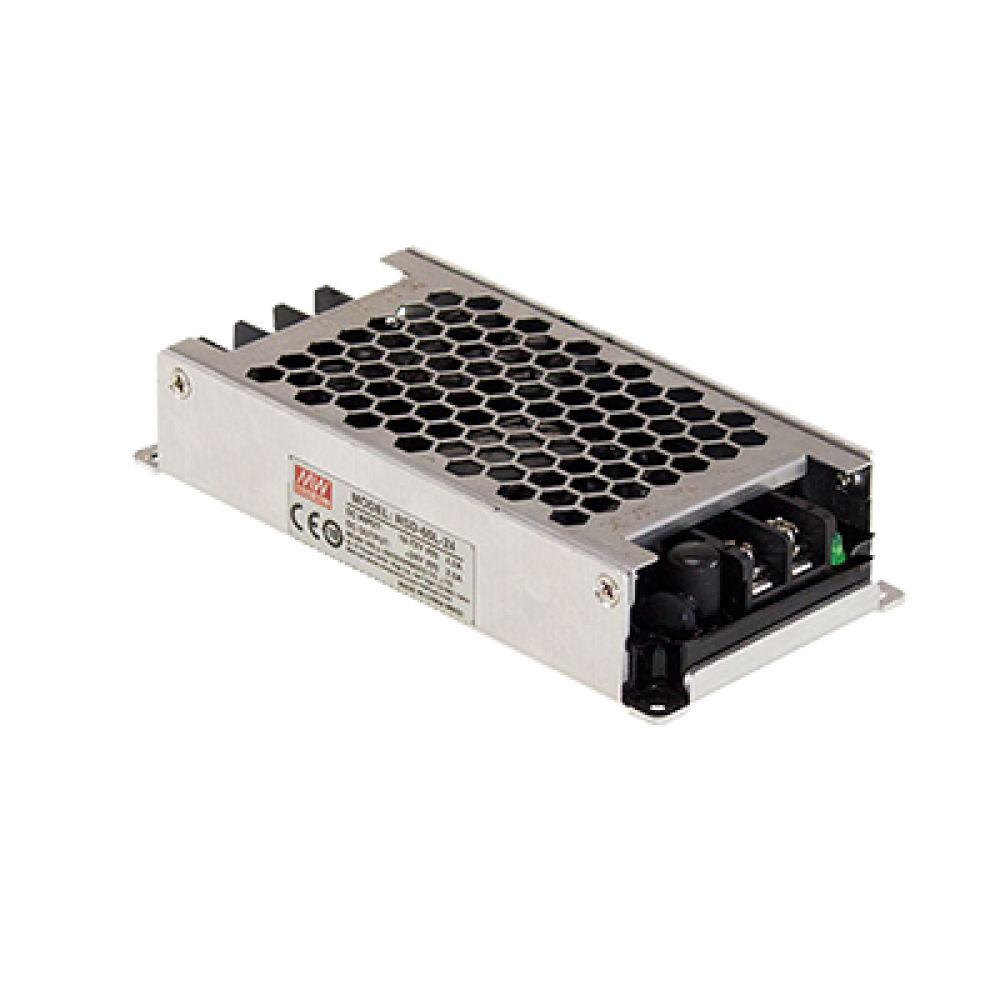

RSD-60L-24 is a 60W 24V 2.5A enclosed type DC-DC reliable railway converter that is equipped with a built-in constant current limiting circuit and protections for overload, short circuit, output over voltage and input reverse polarity. RSD-60L-24 features low ripple and noise, supreme EMC characteristics, 4000VDC input/output isolation, 1U low profile (25mm) and an interior with semi-potted silicone. This product can be used for applications of two-stage isolation, voltage stability and harsh industrial installations such as security systems, DC UPS systems, and telecoms equipment. The design complies with ITE standards (IEC60950-1 and EN55032) and railway certificates (EN50155, EN45545-2 and IEC60571), so they are suitable for all kinds of vehicle applications including railway, subway, metro rapid transit system, bus, leisure trailer and vessel.
