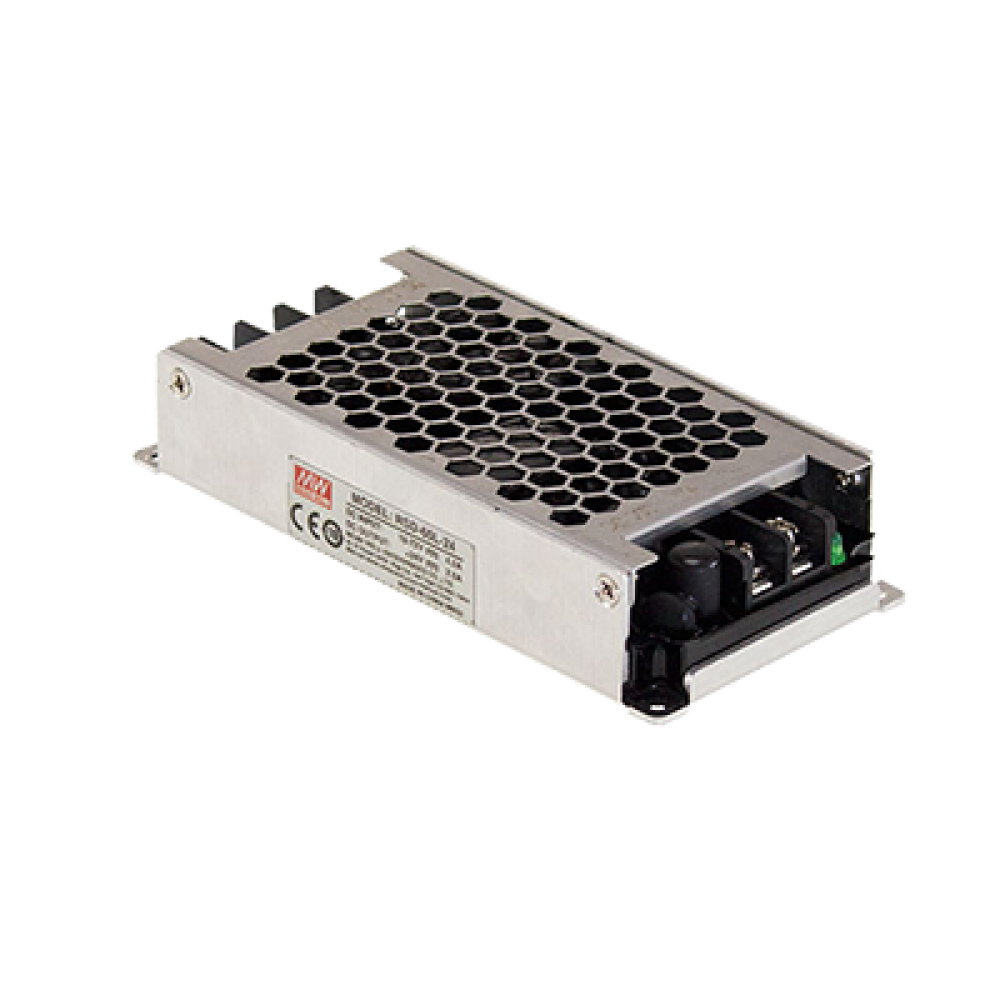

RSD-60H-5
60W 48VDC Input 5VDC Output Railway Converter Please ring us to discuss a great price for this product.Product Features
- Compliance to EN50155 and EN45545-2 railway standard
- Ultra compact and 1U low profile(25mm)
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity
- 4:1 wide input range
- 3 years warranty
- 4000VDC I/O isolation (Reinforced isolation)
- Built-in constant current limiting circuit
Description
RSD-60 is a 60W enclosed type DC-DC reliable railway converter that is equipped with a built-in constant current limiting circuit and protections for overload, short circuit, output over voltage and input reverse polarity. This series comprises three types of models with 4:1 width but different input ranges of 9~36V/ 18~72V/ 40~160V and uses the standard input voltages such as 12V, 24V, 36V, 48V, 72V, 96V and 110V. RSD-60 features low ripple and noise, supreme EMC characteristics, 4000VDC input/output isolation, 1U low profile (25mm) and an interior with semi-potted silicone. RSD-60 can be used for applications of two-stage isolation, voltage stability and harsh industrial installations such as security systems, DC UPS systems, and telecoms equipment. The design of RSD-60 complies with ITE standards (IEC60950-1 and EN55032) and railway certificates (EN50155, EN45545-2 and IEC60571), so they are suitable for all kinds of vehicle applications, including railway, subway, metro rapid transit system, bus, leisure trailer and vessel.
