RID-65B

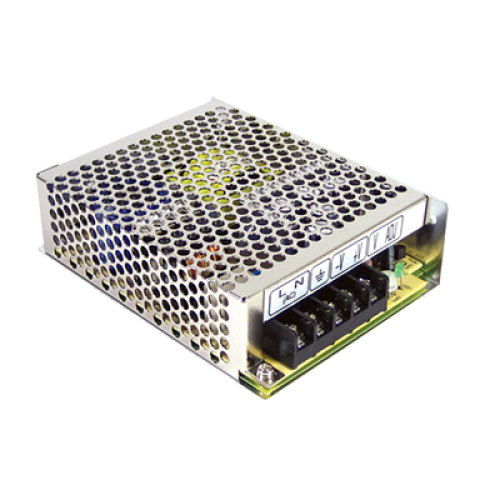

68W Dual Output 5V 4A / 24V 2A High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- Isolated output & GND for CH1, CH2
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- All using 105°C long life electrolytic capacitors
- Withstand 300VAC surge input for 5 seconds
- High operating temperature up to 70°C
- Withstand 5G vibration test
- High efficiency, long life and high reliability
Description
The MEAN WELL RID-65B is a dual-output enclosed AC/DC power supply providing a 5VDC CH1 output rated at 4A and a 24VDC CH2 output rated at 2A, with up to 68W total rated output power. Its isolated dual outputs support equipment requiring separate low-voltage DC rails within the same system. The power supply accepts 88–264VAC or 125–373VDC input and withstands a 300VAC surge for five seconds without damage. Typical efficiency reaches 81%, and the CH1 5V output can be adjusted from 4.75V to 5.5V. Fanless free-air convection cooling, short-circuit, overload and over-voltage protection support reliable operation. The RID-65B operates from -25°C to +70°C and is housed in a compact 129 x 98 x 38mm enclosure.
