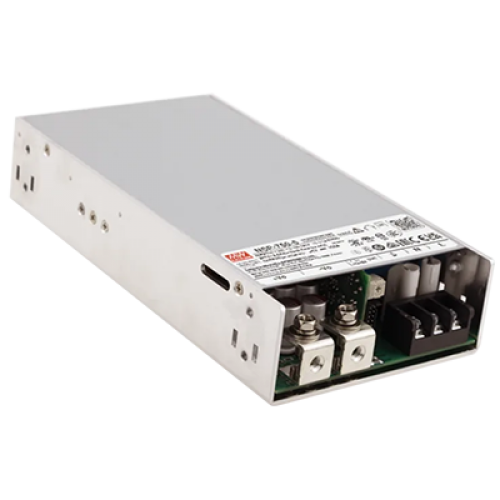

NSP-750-15
750W 50A 15VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 15V DC output for equipment requiring a regulated mid-range DC supply
- Rated output current of 50A
- Rated output power of 750W
- 1500W peak power capability for short-duration load demands
- Peak current capability of 100A for 5 seconds
- Wide 85 to 305Vac input range with 120 to 431Vdc input support
- Active PFC for improved input power performance
- Typical efficiency of 92%
- Output voltage adjustment range from 15V to 19V
- Low leakage current below 350µA
- Remote ON/OFF control for system-level power management
- Remote sense function to help compensate voltage drop across load wiring
- DC OK signal for output status monitoring
- Built-in auxiliary 5V and 12V power outputs
- Built-in fan ON/OFF control with noise below 45dB
- Built-in protection against short circuit, overload, over voltage and over temperature
- 5-year warranty
Description
The MEAN WELL NSP-750-15 provides regulated 15VDC output at up to 50A with 750W continuous power for industrial automation, electronic equipment and other high-reliability systems. Its 85–305VAC input incorporates PFC for broad mains compatibility. The unit provides up to 1500W and 100A peak output for five seconds, supporting equipment with demanding short-duration power requirements. The nominal output can be adjusted from 15V to 19V, with typical efficiency of 92%. A temperature-controlled built-in fan manages forced-air cooling, while Remote ON/OFF, Remote Sense and DC OK signalling support system control, voltage compensation and output monitoring. 5V and 12V auxiliary outputs are also provided for supporting system electronics.
