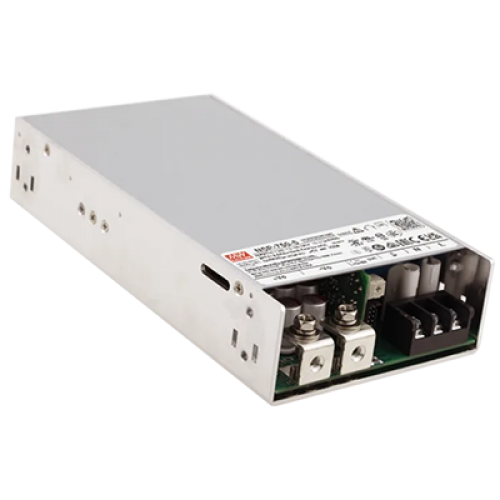

NSP-750-12
750W 62.5A 12VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 12V DC output for industrial, automation, charging, network and system power applications
- Rated output current of 62.5A
- Rated output power of 750W
- 1500W peak power capability for short-duration load demands
- Peak current capability of 125A for 5 seconds
- Wide 85 to 305Vac input range with 120 to 431Vdc input support
- Active PFC for improved input power performance
- Typical efficiency of 92%
- Output voltage adjustment range from 10.8V to 14V
- Maximum ripple and noise of 200mVp-p
- Low leakage current below 350µA
- Remote ON/OFF control for system-level power management
- Remote sense function to help compensate voltage drop across load wiring
- DC OK signal for output status monitoring
- Built-in auxiliary 5V and 12V power outputs
- Built-in fan ON/OFF control with noise below 45dB
- Built-in protection against short circuit, overload, over voltage and over temperature
- 5-year warranty
Description
The MEAN WELL NSP-750-12 is a high-reliability 12VDC enclosed power supply delivering up to 62.5A and 750W continuous output. Its ultra-wide 85–305VAC input with PFC supports industrial automation, medical systems, electronic equipment and other demanding applications. The unit provides 200% peak-power capability, delivering up to 1500W and 125A for five seconds to accommodate high short-duration loads. Output voltage can be adjusted from 10.8V to 14V, with typical efficiency of 92%. Temperature-controlled forced-air cooling supports reliable thermal performance, while Remote ON/OFF, Remote Sense, DC OK signalling and dedicated auxiliary outputs provide flexible system control and integration.
