NSP-750-24
751.2W 31.3A 24VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 1500W peak power capability for short-duration load demands
- Peak current capability of 62.5A for 5 seconds
- Wide 85 to 305Vac input range with 120 to 431Vdc input support
- Active PFC for improved input power performance
- Typical efficiency of 94%
- Output voltage adjustment range from 21V to 26V
- Maximum ripple and noise of 240mVp-p
- Low leakage current below 350µA
- Remote ON/OFF control for system-level power management
- Remote sense function to help compensate voltage drop across load wiring
- DC OK signal for output status monitoring
- Built-in auxiliary 5V and 12V power outputs
- Built-in fan ON/OFF control with noise below 45dB
- 24V DC output for automation, controls, security, telecom and industrial equipment
- Rated output current of 31.3A
- Rated output power of 751.2W
Description

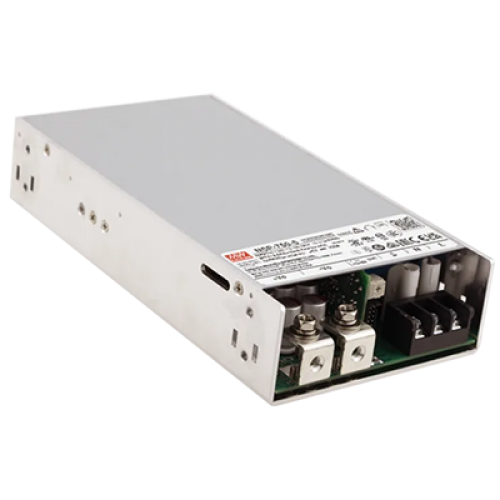

The MEAN WELL NSP-750-24 is a high-reliability 24VDC enclosed power supply delivering up to 31.3A and 751.2W continuous output. Its ultra-wide 85–305VAC input with PFC makes it suitable for industrial automation, control systems, security equipment, charging applications and other systems requiring dependable 24V power. The unit delivers up to 1500W and 62.5A peak output for five seconds to support demanding transient loads. Output voltage is adjustable from 21V to 26V, while typical efficiency reaches 94%. Temperature-controlled forced-air cooling, Remote ON/OFF, Remote Sense, DC OK signalling and 5V/12V auxiliary power outputs support reliable operation and flexible system integration.
