NSP-750-36
752.4W 20.9A 36VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 36V DC output for industrial, battery-related, charging and system power applications
- Rated output current of 20.9A
- Rated output power of 752.4W
- 1500W peak power capability for short-duration load demands
- Peak current capability of 41.7A for 5 seconds
- Wide 85 to 305Vac input range with 120 to 431Vdc input support
- Active PFC for improved input power performance
- Typical efficiency of 95%
- Output voltage adjustment range from 32V to 43V
- Maximum ripple and noise of 240mVp-p
- Low leakage current below 350µA
- Remote ON/OFF control for system-level power management
- Remote sense function to help compensate voltage drop across load wiring
- DC OK signal for output status monitoring
- Built-in auxiliary 5V and 12V power outputs
- Built-in fan ON/OFF control with noise below 45dB
- Built-in protection against short circuit, overload, over voltage and over temperature
- 5-year warranty
Description

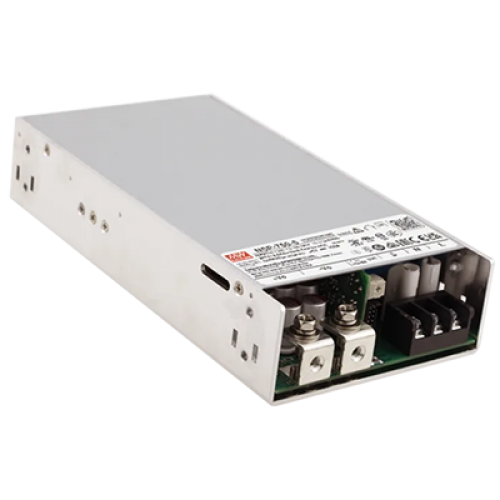

The MEAN WELL NSP-750-36 is a high-reliability 36VDC enclosed power supply delivering up to 20.9A and 752.4W continuous output. Its ultra-wide 85–305VAC input with PFC supports industrial automation, electronic equipment, charging and control-system applications across a broad range of mains supplies. The unit provides up to 1500W and 41.7A peak output for five seconds to support demanding transient loads. Output voltage can be adjusted from 32V to 43V, while typical efficiency reaches 95%. Temperature-controlled forced-air cooling provides dependable thermal management, while Remote ON/OFF, Remote Sense, DC OK signalling and 5V/12V auxiliary outputs provide flexible system control and integration.
