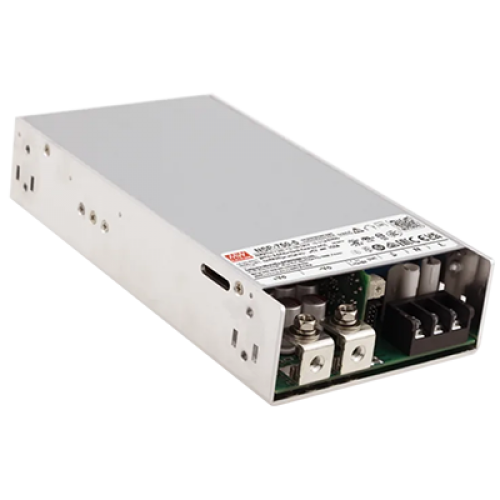

NSP-750-48
753.6W 15.7A 48VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 48V DC output for telecom, network, PoE power sourcing, automation and industrial systems
- Rated output current of 15.7A
- Rated output power of 753.6W
- 1500W peak power capability for short-duration load demands
- Peak current capability of 31.3A for 5 seconds
- Wide 85 to 305Vac input range with 120 to 431Vdc input support
- Active PFC for improved input power performance
- Typical efficiency of 95%
- Output voltage adjustment range from 44V to 57V
- Maximum ripple and noise of 240mVp-p
- Low leakage current below 350µA
- Remote ON/OFF control for system-level power management
- Remote sense function to help compensate voltage drop across load wiring
- DC OK signal for output status monitoring
- Built-in auxiliary 5V and 12V power outputs
- Built-in fan ON/OFF control with noise below 45dB
- Built-in protection against short circuit, overload, over voltage and over temperature
- 5-year warranty
Description
The MEAN WELL NSP-750-48 delivers regulated 48VDC output at up to 15.7A with 753.6W continuous power, making it suitable for industrial automation, network equipment, telecom devices, PoE systems, charging equipment and other applications requiring dependable 48V power. Its ultra-wide 85–305VAC input incorporates PFC, while 200% peak-power capability supplies up to 1500W and 31.3A for five seconds to accommodate demanding transient loads. Output voltage can be adjusted from 44V to 57V, with typical efficiency reaching 95%. Temperature-controlled forced-air cooling, Remote ON/OFF, Remote Sense, DC OK signalling and dedicated auxiliary outputs support flexible control and system integration.
