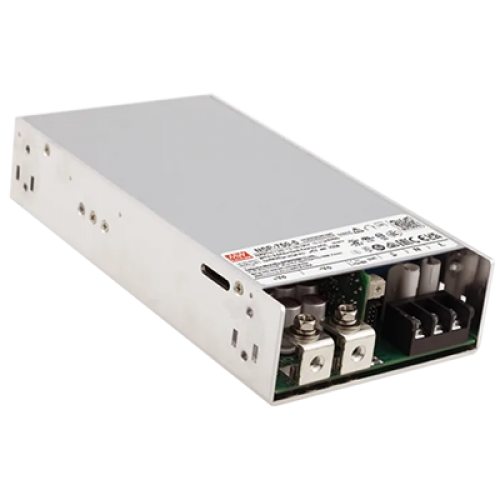

NSP-750-60
756W 12.6A 60VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 60V DC output for higher-voltage industrial and charging-related applications
- Rated output current of 12.6A
- Rated output power of 756W
- 1500W peak power capability for short-duration load demands
- Peak current capability of 25A for 5 seconds
- Wide 85 to 305Vac input range with 120 to 431Vdc input support
- Active PFC for improved input power performance
- Typical efficiency of 95%
- Output voltage adjustment range from 54V to 72V
- Maximum ripple and noise of 300mVp-p
- Low leakage current below 350µA
- Remote ON/OFF control for system-level power management
- Remote sense function to help compensate voltage drop across load wiring
- DC OK signal for output status monitoring
- Built-in auxiliary 5V and 12V power outputs
- Built-in fan ON/OFF control with noise below 45dB
- Built-in protection against short circuit, overload, over voltage and over temperature
- 5-year warranty
Description
The MEAN WELL NSP-750-60 is the highest-voltage standard model in the NSP-750 range, delivering 60VDC at up to 12.6A with 756W continuous output. Its ultra-wide 85–305VAC input with PFC supports industrial, communications, automation, charging and electronic equipment across a broad range of mains systems. The unit provides up to 1500W and 25A peak output for five seconds to support demanding short-duration power requirements. Output voltage is adjustable from 54V to 72V, while typical efficiency reaches 95%. A temperature-controlled internal fan manages cooling, while Remote ON/OFF, Remote Sense, DC OK signalling and 5V/12V auxiliary outputs provide external control, voltage compensation and supporting system power.
