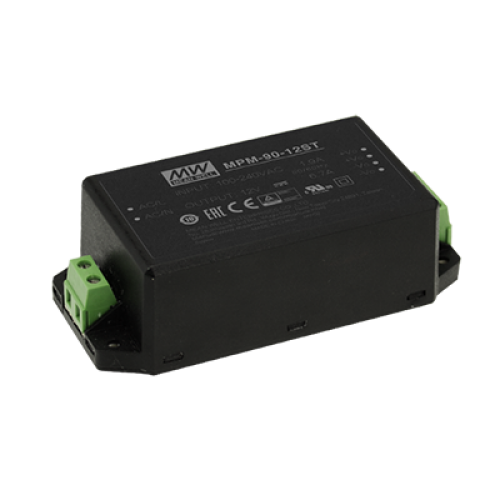

MPM-90-12
80.4W 6.7A 12VDC High Reliability PCB-Mount Medical Power Module Please ring us to discuss a great price for this product.Product Features
- PCB, chassis or screw terminal mounting version
- Medical safety approved with 2 x MOPP
- Suitable for BF application with appropriate system consideration
- No load power consumption <0.1W
- Extremely low leakage current
- Wide operating temperature range -30~+80℃
- EMI Class B without additional components
- Isolation Class II
- Protections: Short circuit / Overload / Over voltage
- 100W peak power capability for 10 seconds
Description
The MEAN WELL MPM-90-12 is a compact PCB-mount medical power module providing 12VDC at 6.7A with 80.4W continuous convection-cooled output. For equipment with short-duration power demands, it can deliver up to 7.37A and 88.4W peak output for 10 seconds. The module accepts 80–264VAC or 113–370VDC input and achieves 92% typical efficiency. Medical-grade 2 x MOPP isolation, ultra-low touch current and suitability for BF applications support integration into appropriate medical equipment. Class II insulation, EMI Class B performance and short-circuit, overload, over-voltage and over-temperature protection enhance system reliability. The PCB-mount module measures just 87 × 52 × 29.5mm for space-efficient integration.
