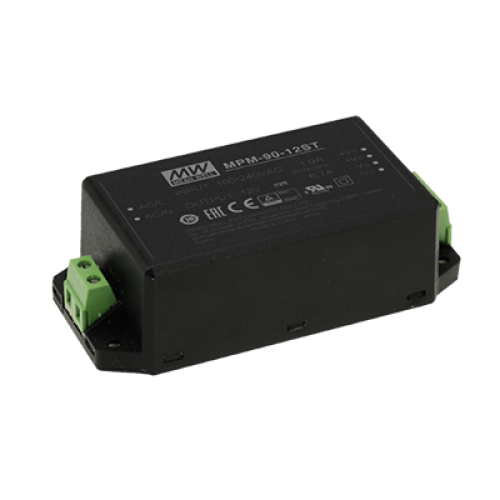

MPM-90-15ST
85.05W 5.67A 15VDC High Reliability Screw Terminal Medical Power Module Please ring us to discuss a great price for this product.Product Features
- PCB, chassis or screw terminal mounting version
- Medical safety approved with 2 x MOPP
- Suitable for BF application with appropriate system consideration
- No load power consumption <0.1W
- Extremely low leakage current
- Wide operating temperature range -30~+80℃
- EMI Class B without additional components
- Isolation Class II
- Protections: Short circuit / Overload / Over voltage
- 100W peak power capability for 10 seconds
Description
The MEAN WELL MPM-90-15ST is a screw-terminal medical power module delivering 15VDC at 5.67A with 85.05W continuous convection-cooled output. Peak capability increases output to 6.23A and 93.5W for up to 10 seconds, supporting short-duration equipment loads. The unit accepts 80–264VAC or 113–370VDC input and achieves 92.5% typical efficiency. Medical-grade 2 x MOPP isolation, ultra-low touch current and BF suitability with appropriate system design support use within medical equipment. The Class II design provides EMI Class B performance without additional components and includes short-circuit, overload, over-voltage and over-temperature protection. Its screw-terminal chassis measures 109 × 52 × 33.5mm and provides 5G vibration resistance.
