NSP-1000-27
999W 37A 27VDC High Reliability Enclosed Power Supply Please ring us to discuss a great price for this product.Product Features
- 85~305Vac input with PFC (277Vac available)
- 200% peak power capability
- Output voltage 0~120% and output current 0~100% programmable
- Current sharing up to 4000W (3+1) for parallel use
- -40~+85℃ wide range operation temperature (> +60℃ derating)
- Extremely low leakage current <350uA, 2 x MOPP, suitable for BF medical applications
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Built-in remote ON/OFF control / Remote Sense / DC OK signal
- 5 Vaux and 12 Vaux power
- 5 years warranty
Description

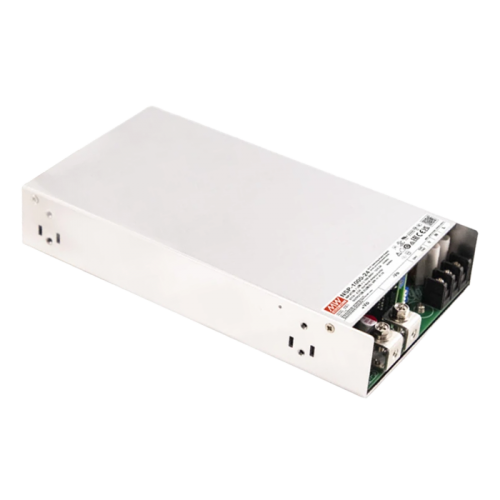

The MEAN WELL NSP-1000-27 provides a regulated 27VDC output at up to 37A with 999W rated power. Designed for high-reliability multi-industry systems, it accepts 85–305VAC input with PFC and can provide up to 2000W peak output for five seconds to support short-duration load requirements. The 27V output can be adjusted from 24.3V to 32.4V, while programmable voltage and current functions provide additional flexibility for system integration and control. Typical efficiency is 93%. Remote ON/OFF, remote sense, DC OK signalling and auxiliary power are built in, with active current sharing allowing up to four units to operate in parallel for higher-power applications.
