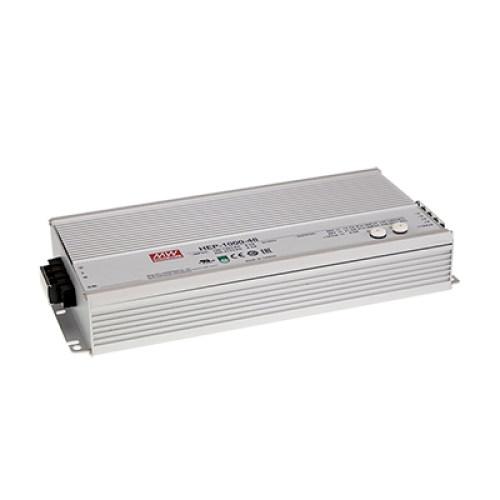

HEP-1000-24
1008W 24VDC 42A Terminal Harsh Environment Power Supply with PMBus Protocol Please ring us to discuss a great price for this product.Product Features
- Output voltage and constant current level programmable
- IP67 design for indoor or outdoor installation (Wiring type)
- Aluminum case fanless design and filling with heat-conducted glue and able to withstand 10G vibration test
- Power or charger mode switchable by SBP-001 (Terminal type)
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 6 years warranty
- Built-in default 2/3 stage charging curves and programmable curve
Description
HEP-1000 is a 1000W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environments. The entire series is housed in an aluminium case and fully potted with heat-conducting glue. Adopting the full range 90~305VAC input, the entire series provides an output voltage line of 24V, 48V and 100V. In addition to the high efficiency up to 96%, the whole series operates from -40℃ ~ 70℃ under air convection without a fan. HEP-1000 has complete protection functions and 10G anti-vibration capability; it complies with international safety regulations such as TUV BS EN/EN62368-1, and the design refers to BS EN/EN61558-1 and BS EN/EN60335-1. HEP-1000 series serves as a high-performance power supply solution for various industrial and charger applications.
Style
- Terminal
